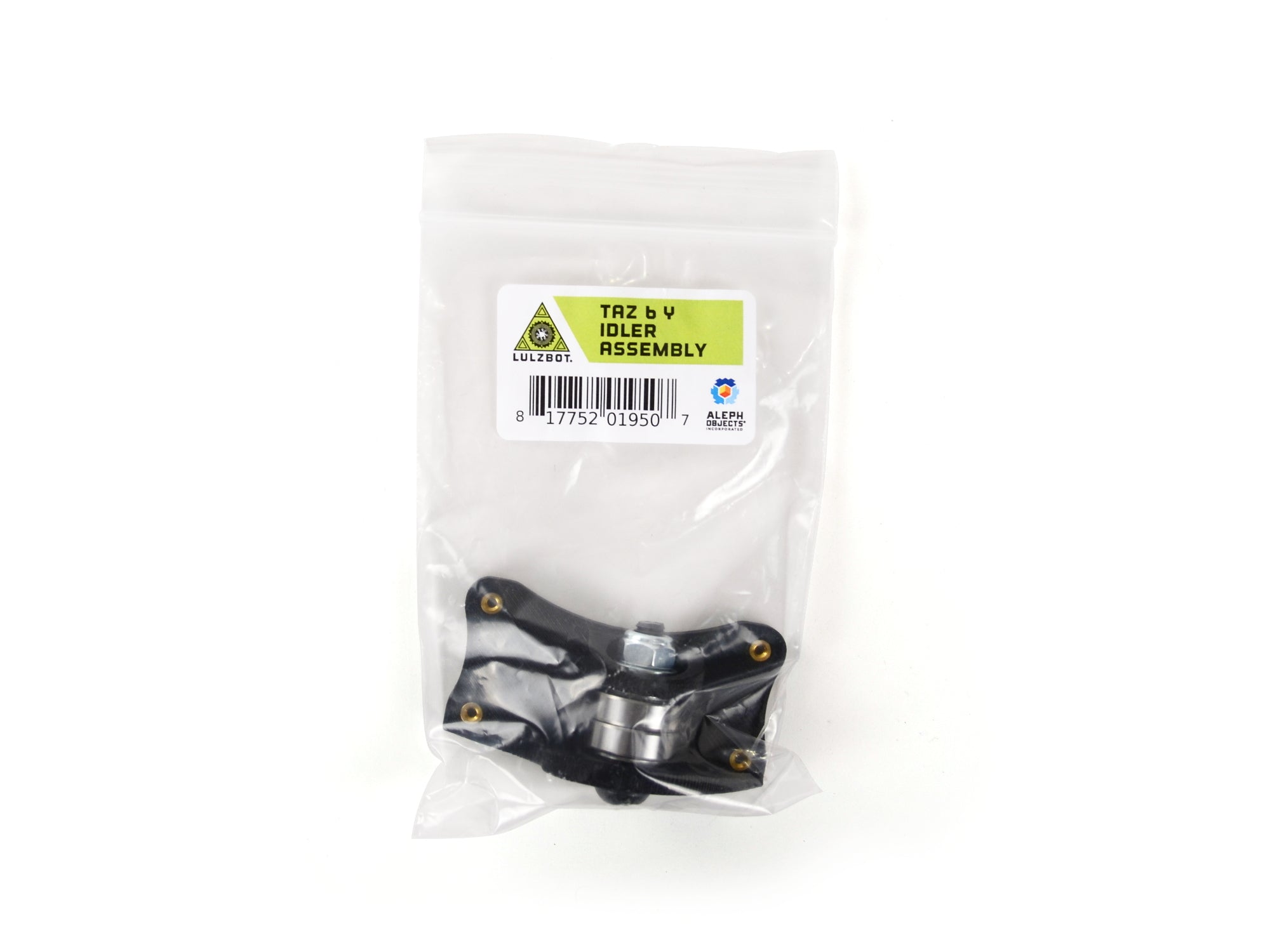

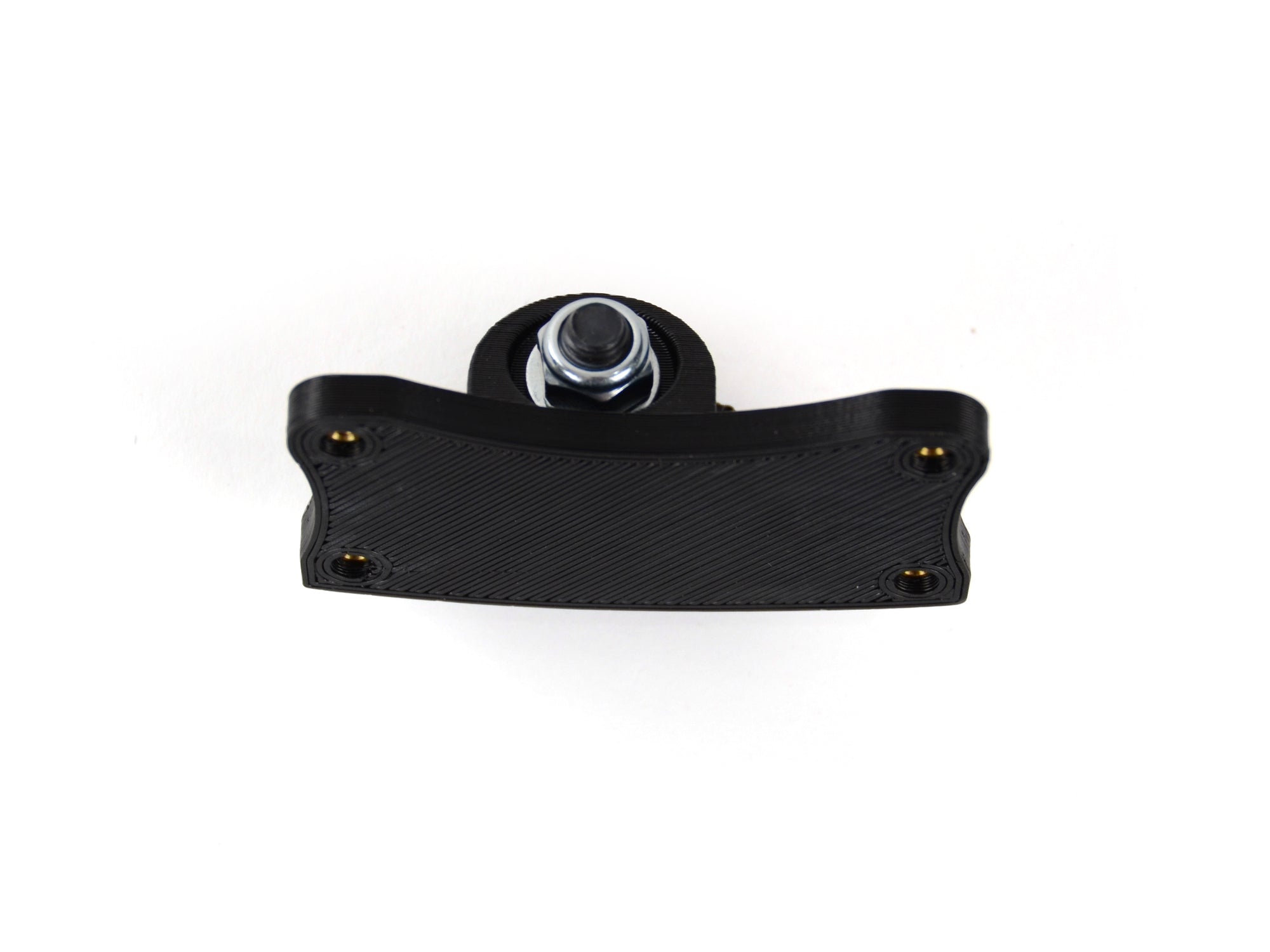

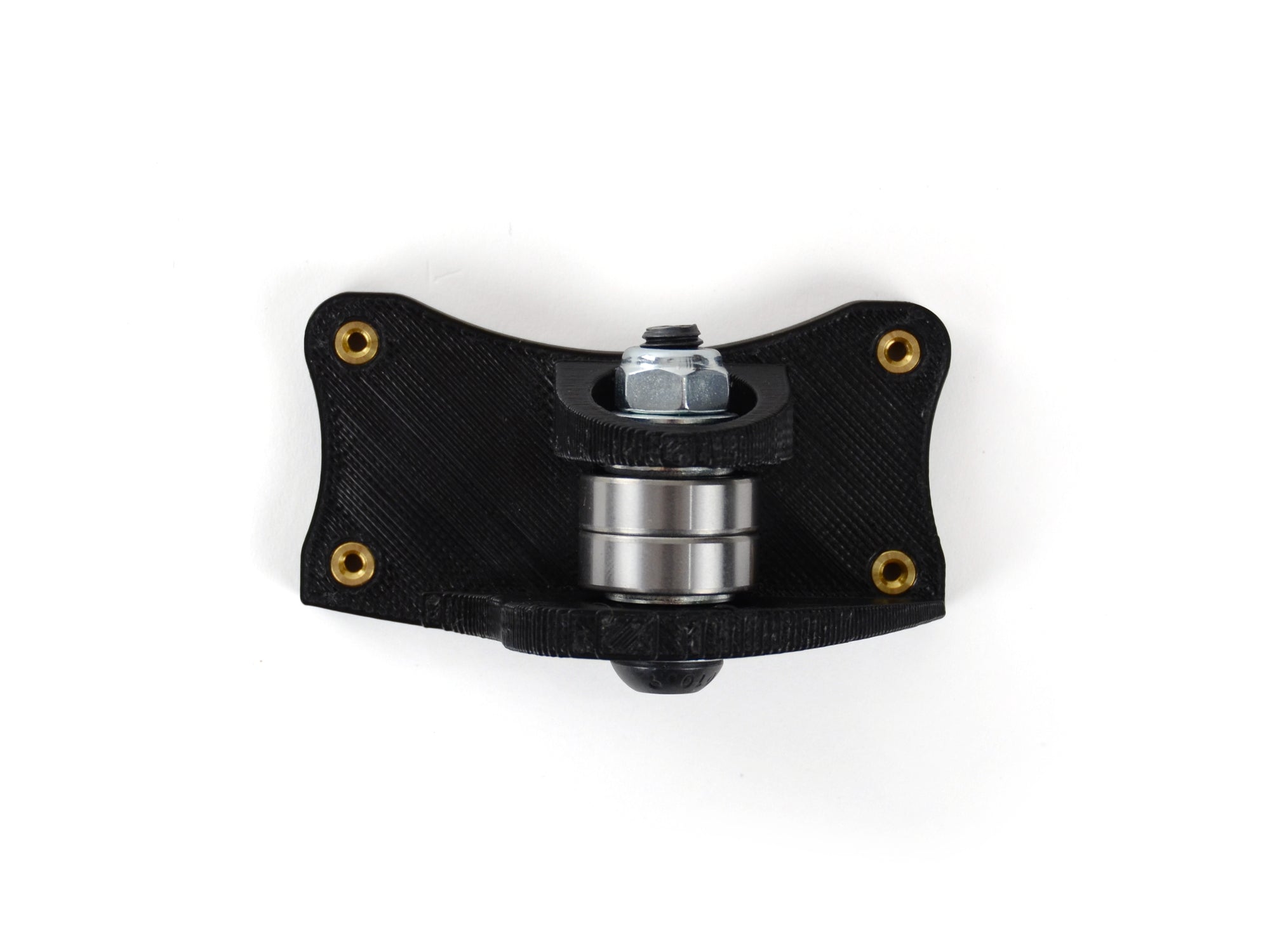

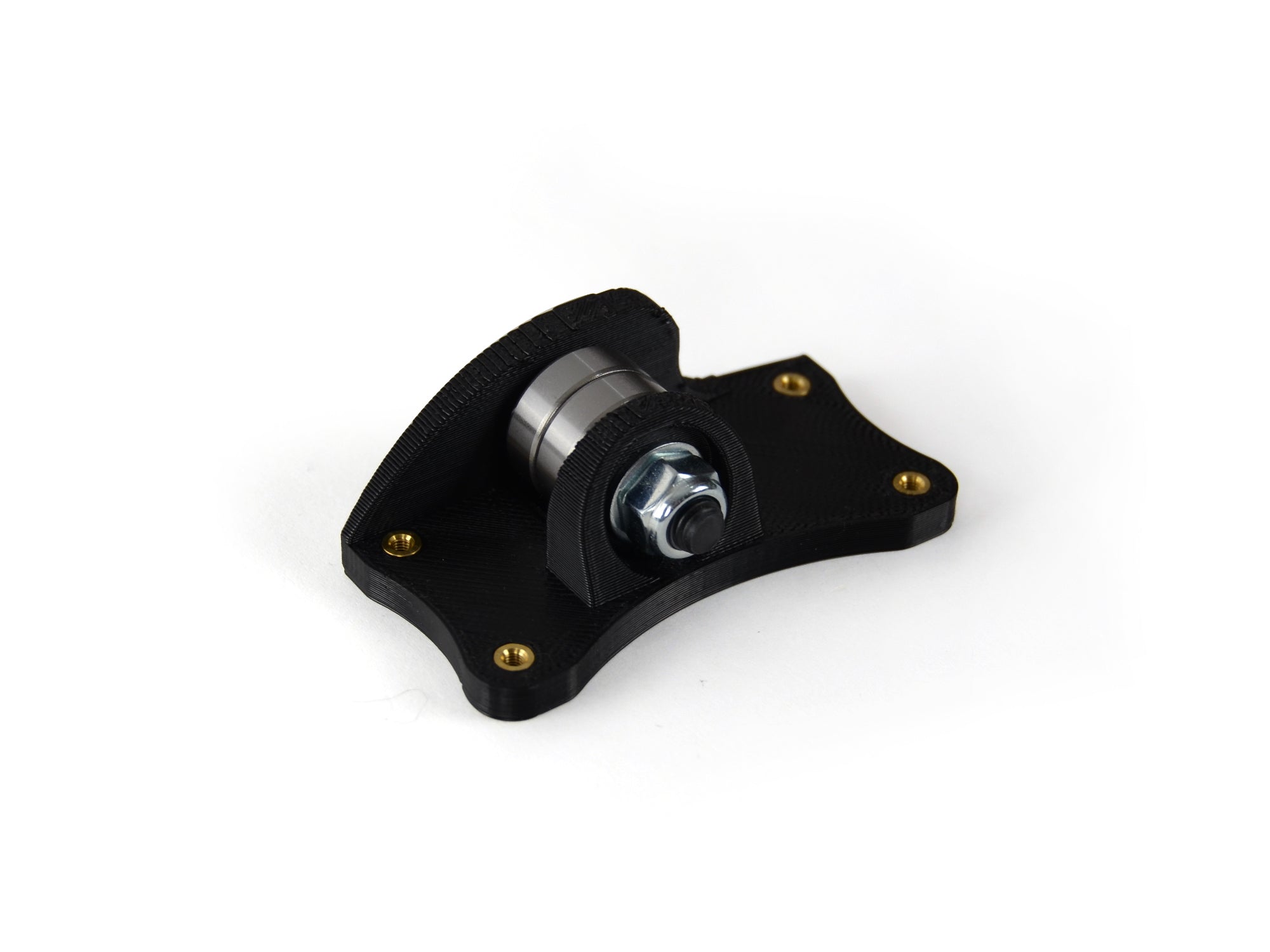

TAZ6 Y Idler Assembly

This fully assembled Y-axis Idler Mount is a direct replacement for the TAZ 6 3D Printer Y-axis Idler Assembly. The heat-set inserts and bearings are pre-installed to make for an easy replacement.

Parts Included:

One (1) TAZ 6 Y-axis Idler Assembly

Specifications:

3D Printed in Black ABS Plastic

One (1) Class 10.9 Stl Button Head Socket Cap Screw M8 Size, 40 mm (1.57 in) Length

Four (4) M8 Washers, Steel, Zinc Plated

One (1) M8 Nyloc Nut, Zinc Plated

Two (2) ABEC3/C3 Rubber Sealed Bearings - BLACK

Four (4) M3 Brass threaded Heat-Set Inserts
