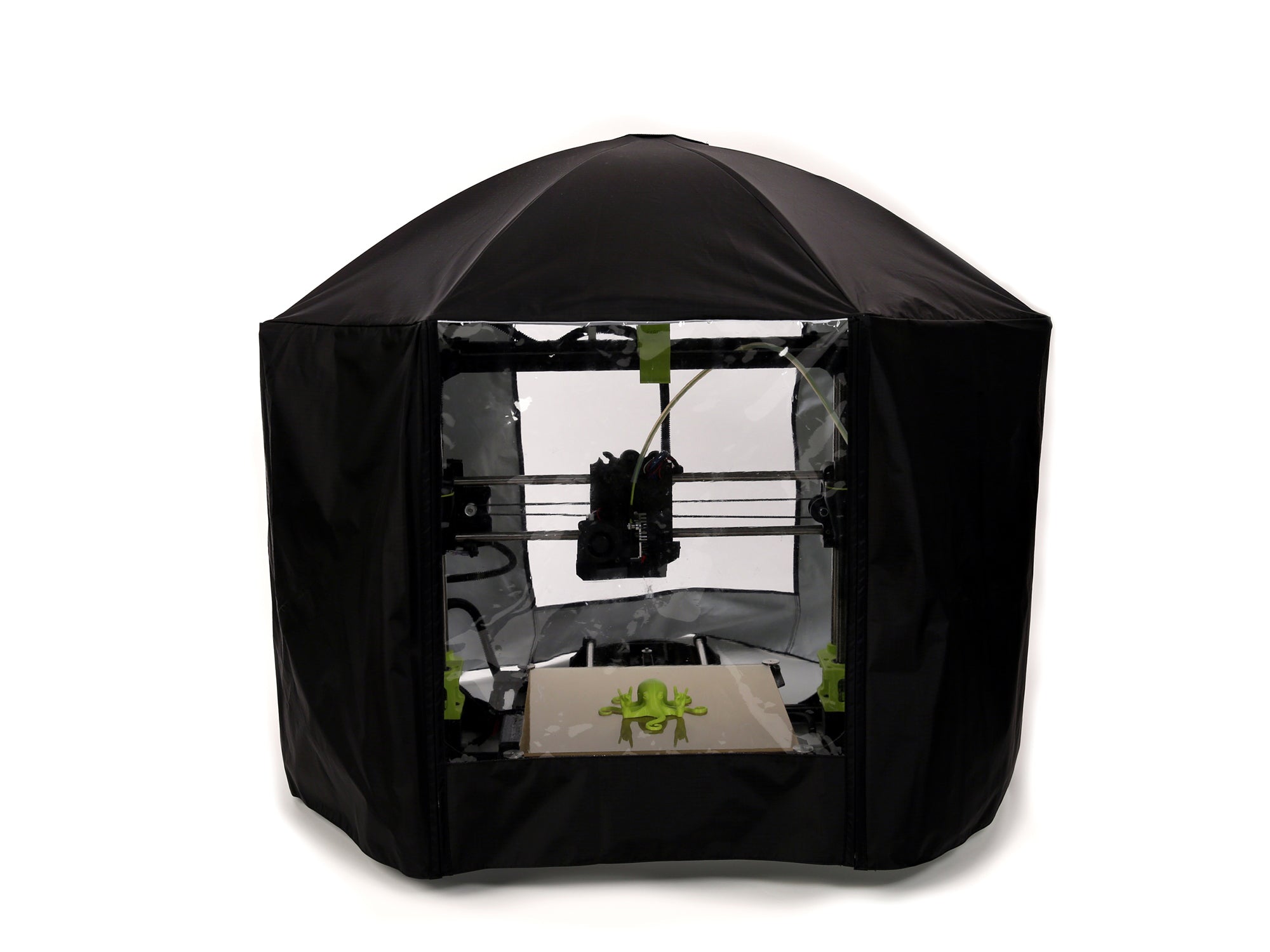

Nylon LulzBot 3D Printer Enclosure

The Nylon LulzBot 3D Printer Enclosure by galaxG Design World provides an affordable, lightweight solution for keeping your LulzBot TAZ or Mini clean and protected. The transparent, self-sealing, magnetic flap ensures easy access for monitoring print progress and removing printed parts, while the design mobility and material flexibility enable quick and convenient set-up and disassembly. Furthermore, negative effects of warping, such as cracking or splitting, can be minimized through effective heat retention. Separate tools and 3D printed parts are required, see more information below.

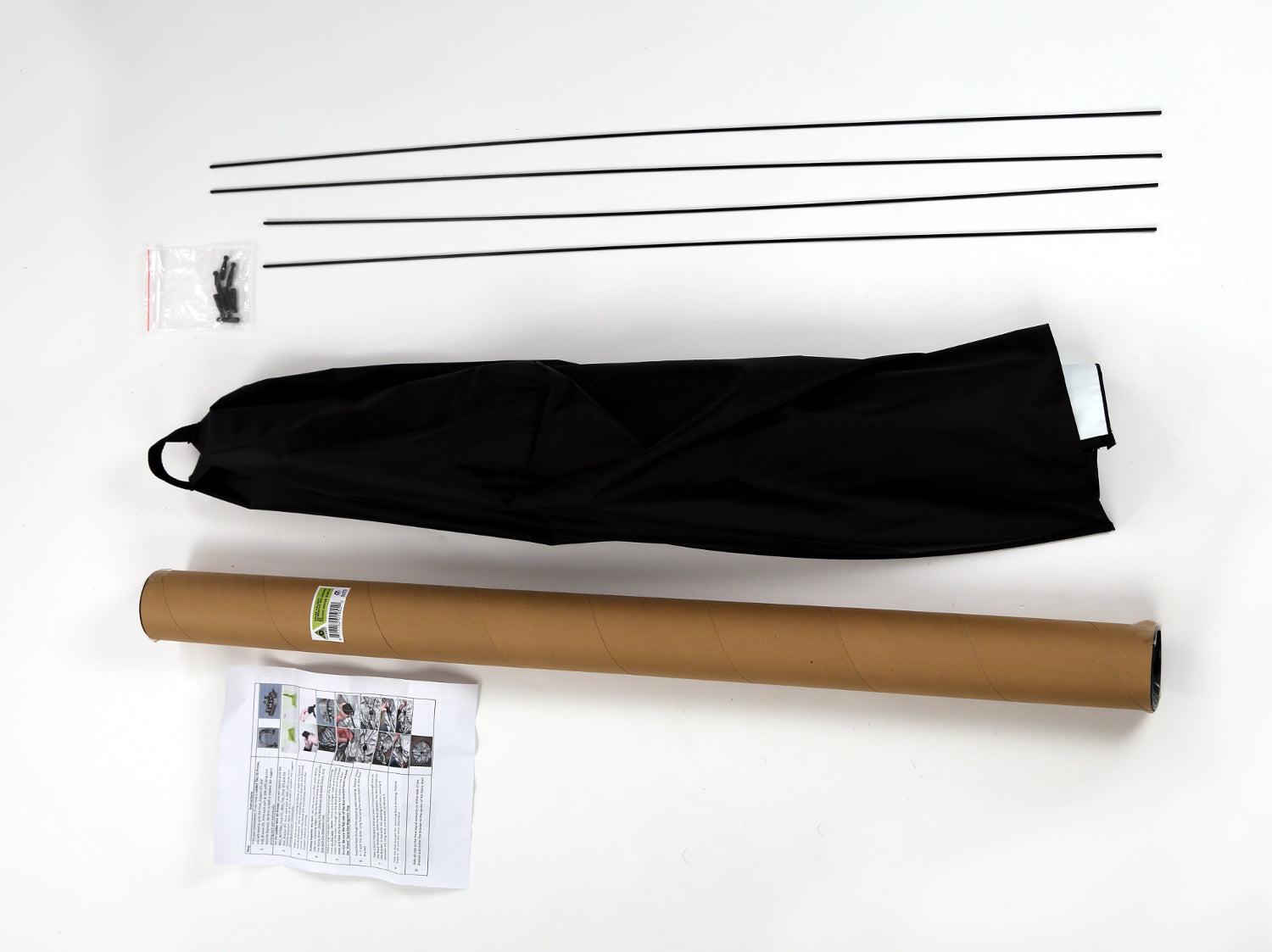

Parts Included

(x1) Nylon cover

(x2) Fiberglass rods

• Diameter: 3.175 mm (0.125 in)

• Length: 898.525 mm (35.375 in)


(x2) Fiberglass rods

• Diameter: 3.175 mm (0.125 in)
• Length: 996.95 mm (39.25 in)

(x8) 3D printed plastic rod tips

(x1) Printed Assembly Instructions (online here)

Additional Parts Required

(x1) Rod Bracket 3D Model STL Format (not included, print yourself)

TAZ users print;

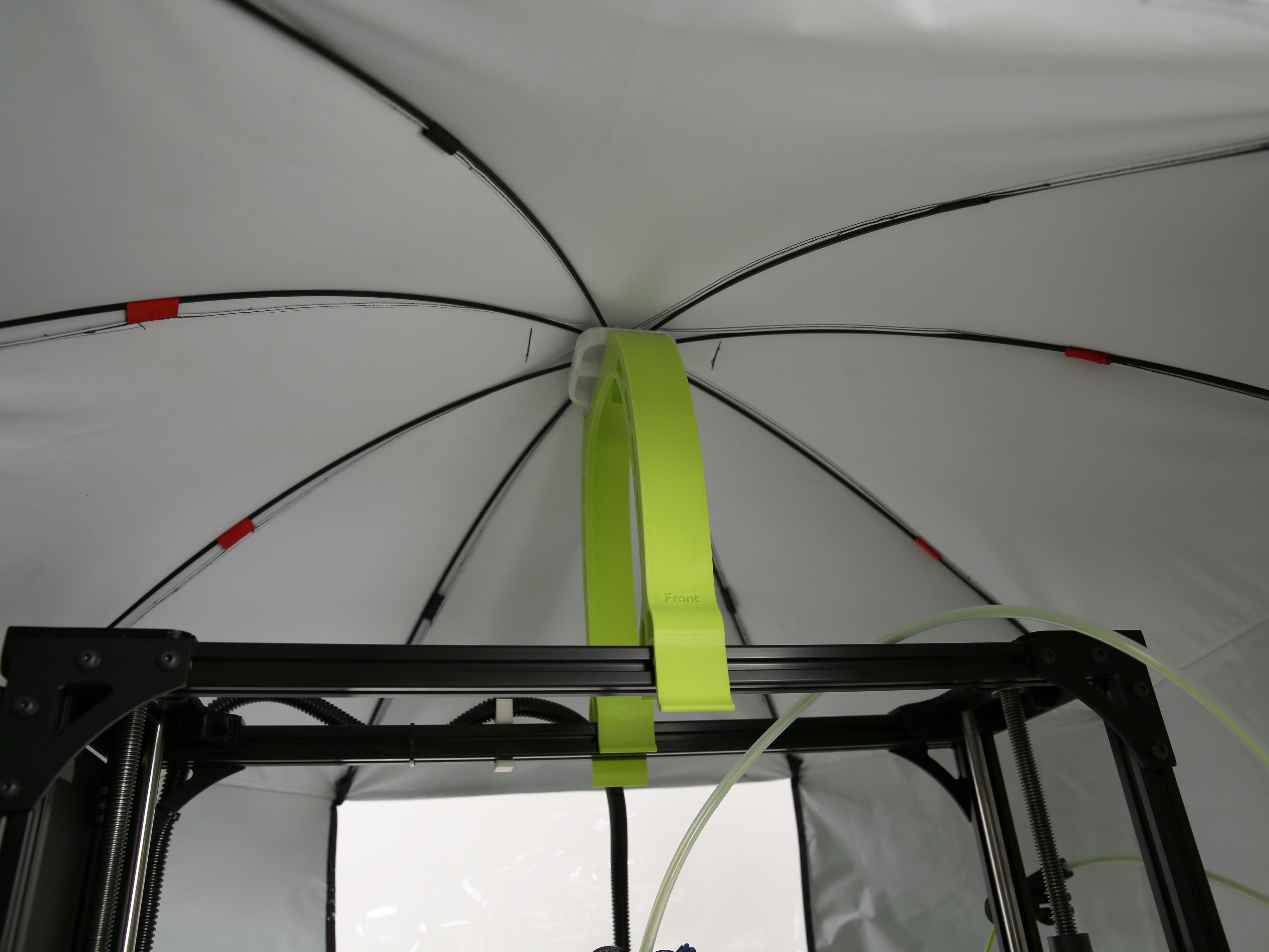

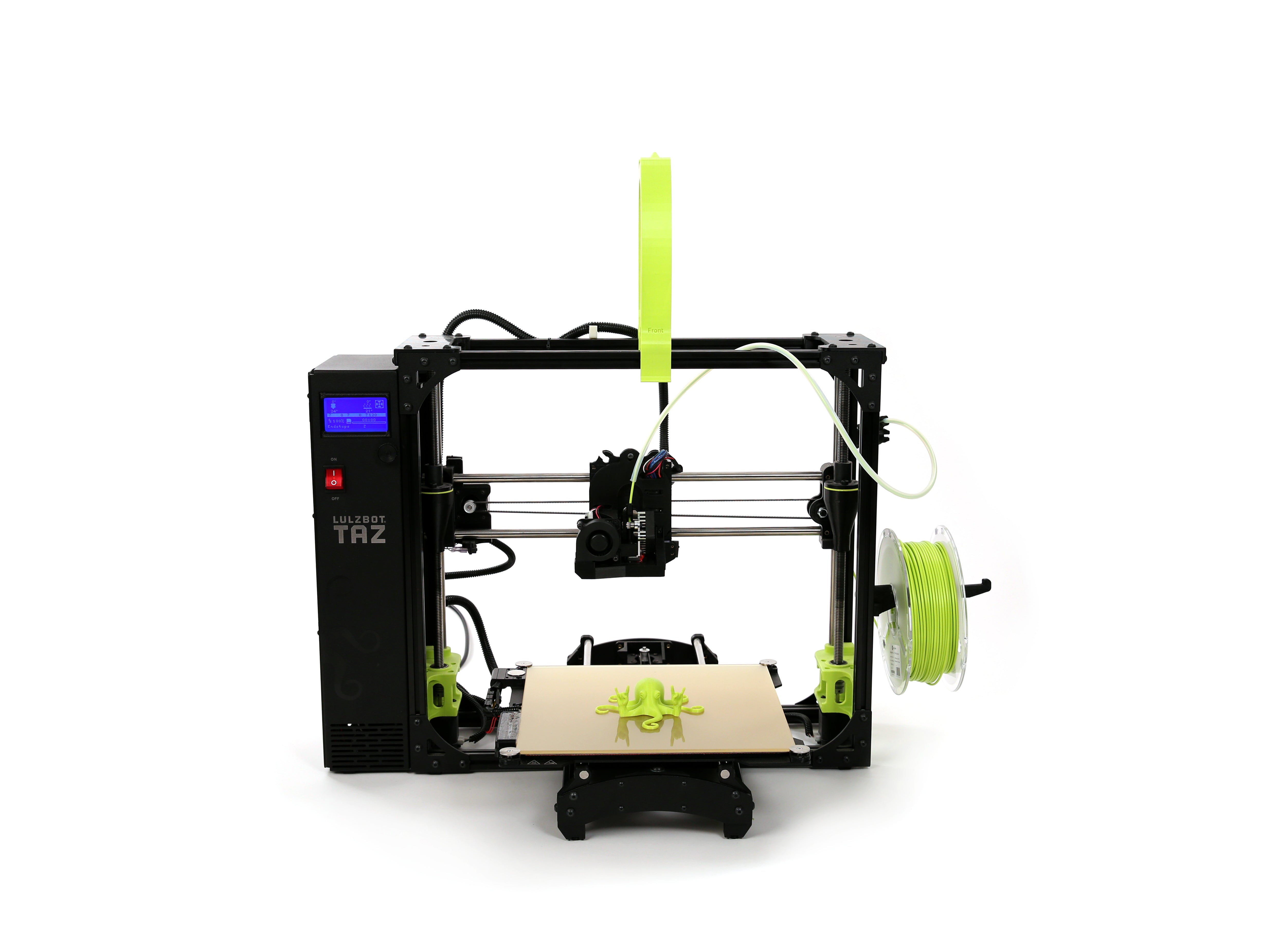

(x1) TAZ Support 3D Model STL Format (not included, print yourself)

Mini users print;

Note: Early LulzBot Mini users v1.03 or earlier will need to print this replacement spool arm: Spool Arm Mini 3D Model STL Format (not included, print yourself)

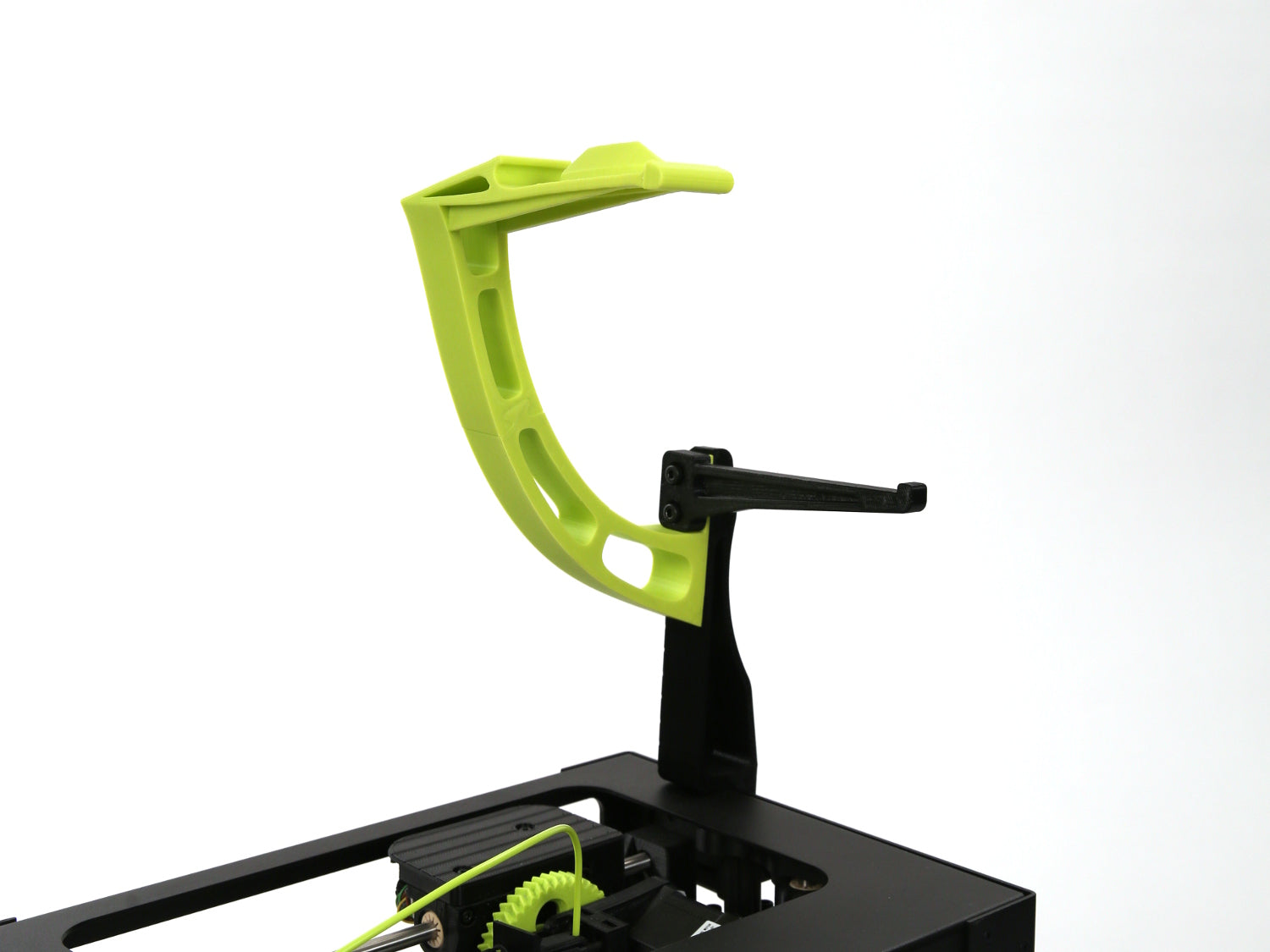

(x1) Mini Bottom 3D Model STL Format (not included, print yourself)

(x1) Mini Top 3D Model STL Format (not included, print yourself)

Tools Needed

(x1) Scissors for cutting quick tie

(x1) 4 mm Allen Hex Wrench for Mini

Optional: Sanding paper or file for adjusting fit of parts as needed

Recommended Operating Dimensions

Dimensions = Width x Length x Height

850.9 mm x 850.9 mm x 749.3 mm (33.5 in x 33.5 in x 29.5 in)
