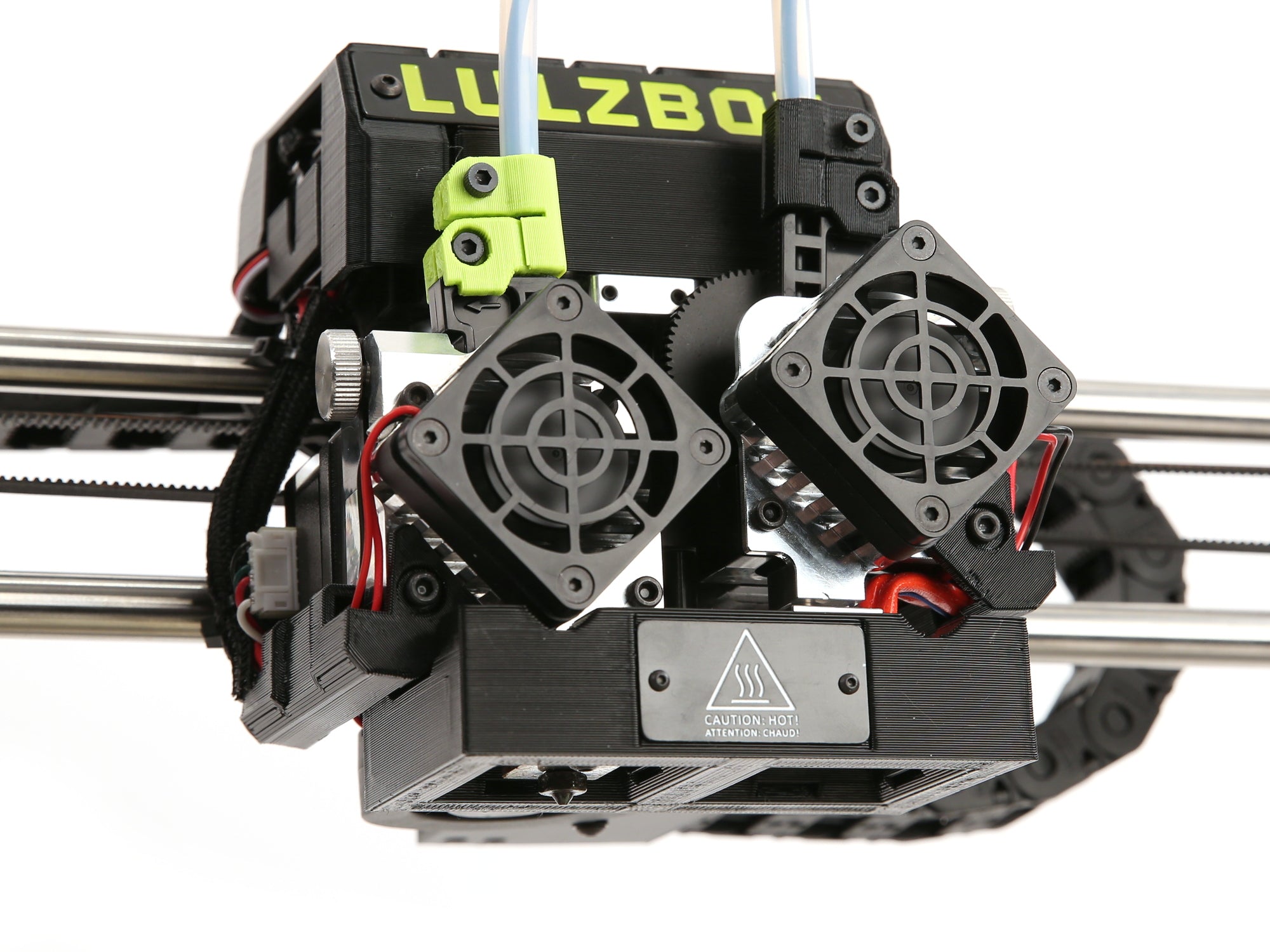

TAZ Pro Dual Extruder Tool Head
Optimize your 3D printing with the LulzBot Dual Extruder Tool Head! Experience true multi-material printing and soluble supports for superior print quality. Achieve professional results with our linear-actuating dual extruders, designed to prevent nozzle drag. Perfect for enhancing your TAZ Pro.
*Not compatible with the TAZ Workhorse
| Tool Head Specifications | |
| Extruder Type | Linear-Actuating Dual Extruder 🔗(Legacy) |
| Filament Diameter | 2.85mm |
| Maximum Flow Rate | Test Data Unavailable |
| Flow Testing | Test Data Unavailable |
| Nozzle Diameter | 0.5mm Hardened Steel |
| Nozzle Layer Height Range | 0.18mm (180 microns) to 0.38mm (380 microns) |
| Nozzle Swapping | Not Supported |
| Swappable Layer Height Range | Not Supported |
| Maximum Hot End Temperature | 290°C (554°F) - Firmware Limited |
| Compatible Filaments | 🔗 PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C |
| Filament Tension Method | Adjustable via Knob, Spring Loaded Idler |
| Extruder Tension Method | Direct-Drive, Gear & Idler |
| Extruder E-Steps | 420 steps/mm |
| Leveling System Compatibility | Automatic 5V Circuit, Automatic BLTouch |
| PTFE Guide Tube Attachment | 3D Printed Clamp |
| Tool Head Weight | 1084g (38.2oz) |
| Tool Head Warranty | 90-Days |
| Country of Origin | USA |
| Construction Materials | |
| Nozzle Material | Hardened Steel |
| Heater Block Material | Aluminum, V6 Configuration |
| Heat Break Material | Stainless Steel |
| Fan Shroud and Mount Material | 🔗Polymaker ABS |
| Cold Block and Heat Sink Material | Aluminum |
| Drive Gear Material | Plastic Drive and Steel Hobb |
| Extruder Motor Size | 34mm, 1.8° NEMA 17 Stepper |
| Heater Cartridge | 24V, 40W |
| Temperature Sensor | 🔗100k Semitec NTC Thermistor |
| Part Cooling Fan | 24V DC Blower Fan |
| Heat Sink Fan | 5V DC Axial Fan |
| Compatible 3D Printers | |
| TAZ 8 | Not Supported |
| Workhorse | Not Supported |
| Mini Platform | Not Supported |
| SideKick | Not Supported |
| TAZ Pro Platform | Pro, Pro S, Pro XT |
TAZ Pro Dual Extruder Tool Head
Sale price$795.00
Choose options
TAZ Pro Dual Extruder Tool Head
Sale price$795.00
