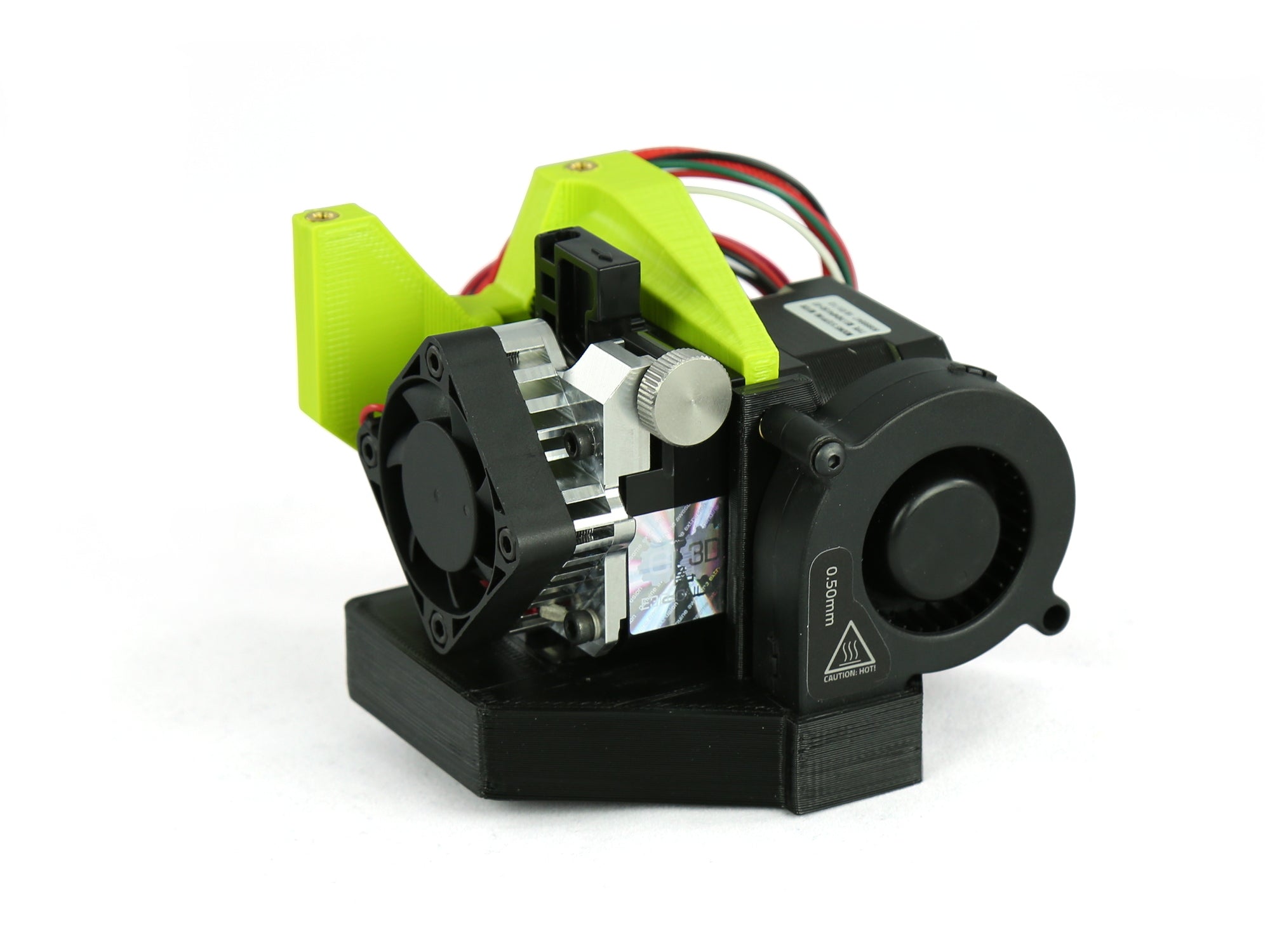

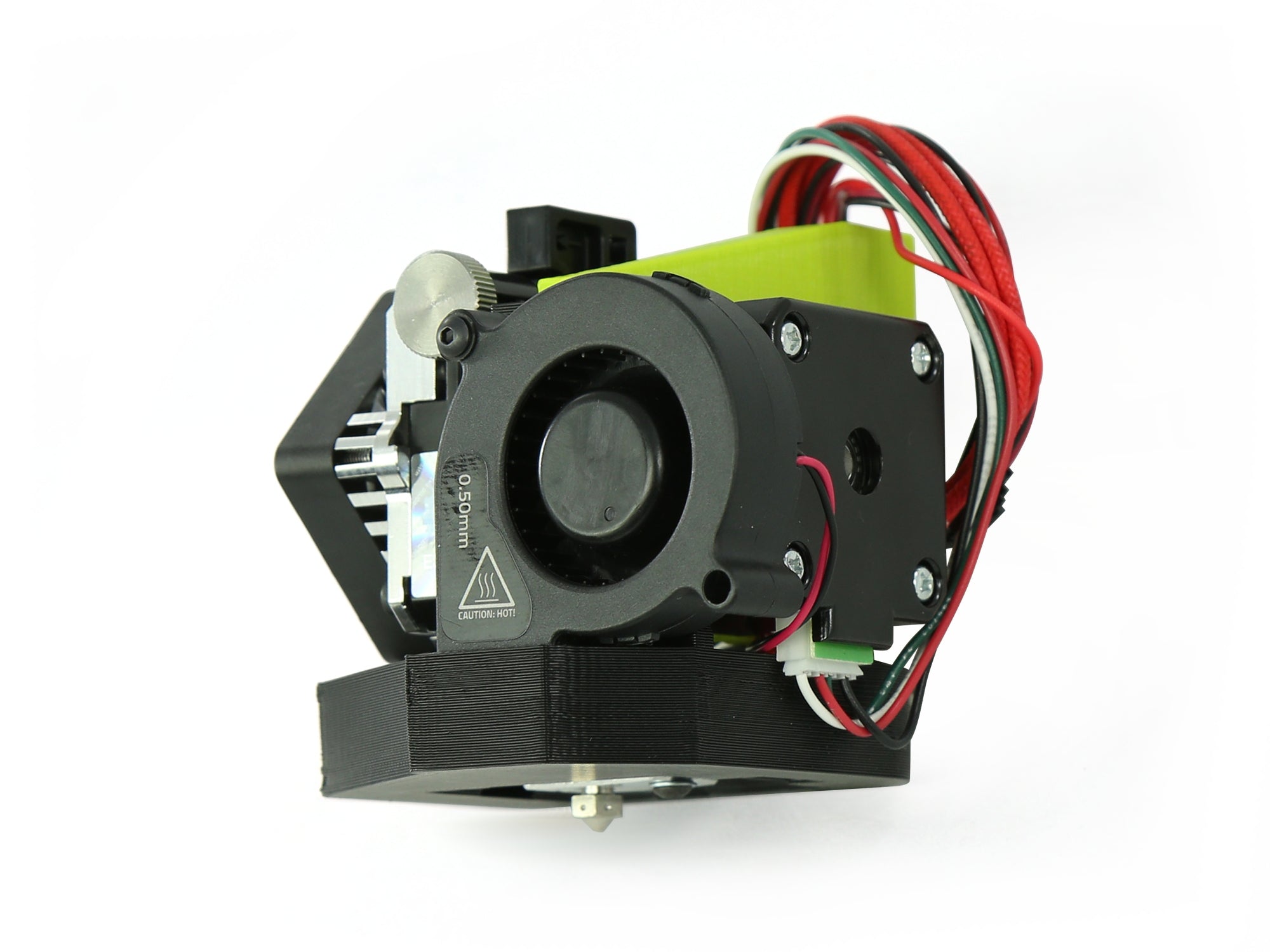

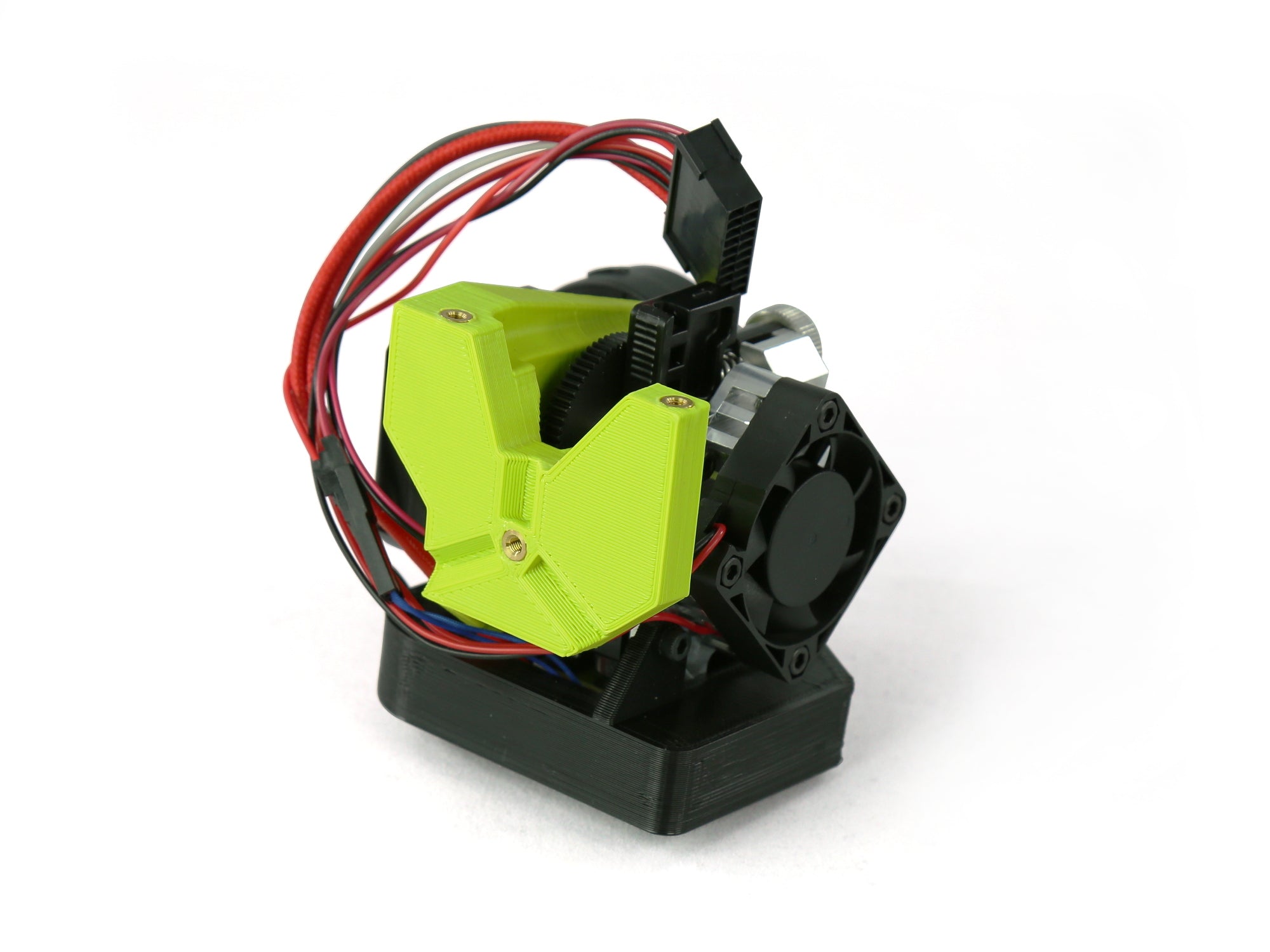

SE Tool Head
Versatility and precision come standard with the LulzBot SE Tool Head, featuring the Universal Mounting System, and the legendary Titan Aero Hot End and Extruder from E3D. This tried and true combination enables a vast palette of supported 3D printing material, both rigid and flexible.
The LulzBot SE Tool Head features a genuine E3D Titan Aero Extruder/Hot End with a 0.50 millimeter nozzle enabling out of the box 3D printing with over 35 materials, including flexibles!
A high-output centrifugal fan and quad-port cooling duct support elaborate prints with extensive bridging, cooling filament in 360-degrees before it has time to sag between points.
The Universal Mounting System makes swapping tool heads easy, you'll have the right tool head for the right job installed in minutes.
Filament Tension Settings
| Tool Head Specifications | |
| Extruder Type | Single Extruder 🔗(Legacy) |
| Filament Diameter | 2.85mm |
| Maximum Flow Rate | Test Data Unavailable |
| Flow Testing | Test Data Unavailable |
| Nozzle Diameter | 0.5mm Nickel Plated Copper |
| Nozzle Layer Height Range | 0.18mm (180 microns) to 0.38mm (380 microns) |
| Nozzle Swapping | Not Supported |
| Swappable Layer Height Range | Not Supported |
| Maximum Hot End Temperature | 290°C (554°F) - Firmware Limited |
| Compatible Filaments | 🔗 PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C |
| Filament Tension Method | Adjustable via Knob, Spring Loaded Idler |
| Extruder Tension Method | Direct-Drive, Gear & Idler |
| Extruder E-Steps | 420 steps/mm |
| Leveling System Compatibility | Automatic 5V Circuit, Automatic BLTouch |
| PTFE Guide Tube Attachment | 3D Printed Clamp |
| Tool Head Weight | 491g (17.3oz) |
| Tool Head Warranty | 90-Days |
| Country of Origin | USA |
| Construction Materials | |
| Nozzle Material | Nickel Plated Copper |
| Heater Block Material | Aluminum, V6 Configuration |
| Heat Break Material | Stainless Steel |
| Fan Shroud and Mount Material | 🔗Polymaker ABS |
| Cold Block and Heat Sink Material | Aluminum |
| Drive Gear Material | Plastic Drive and Steel Hobb |
| Extruder Motor Size | 34mm, 1.8° NEMA 17 Stepper |
| Heater Cartridge | 24V, 40W |
| Temperature Sensor | 🔗100k Semitec NTC Thermistor |
| Part Cooling Fan | 24V DC Blower Fan |
| Heat Sink Fan | 5V DC Axial Fan |
| Compatible 3D Printers | |
| TAZ 8 | Not Supported |
| Workhorse | Workhorse |
| Mini Platform | Mini 2 |
| SideKick | SideKick 747 |
| TAZ Pro Platform | Pro, Pro S, Pro XT |
