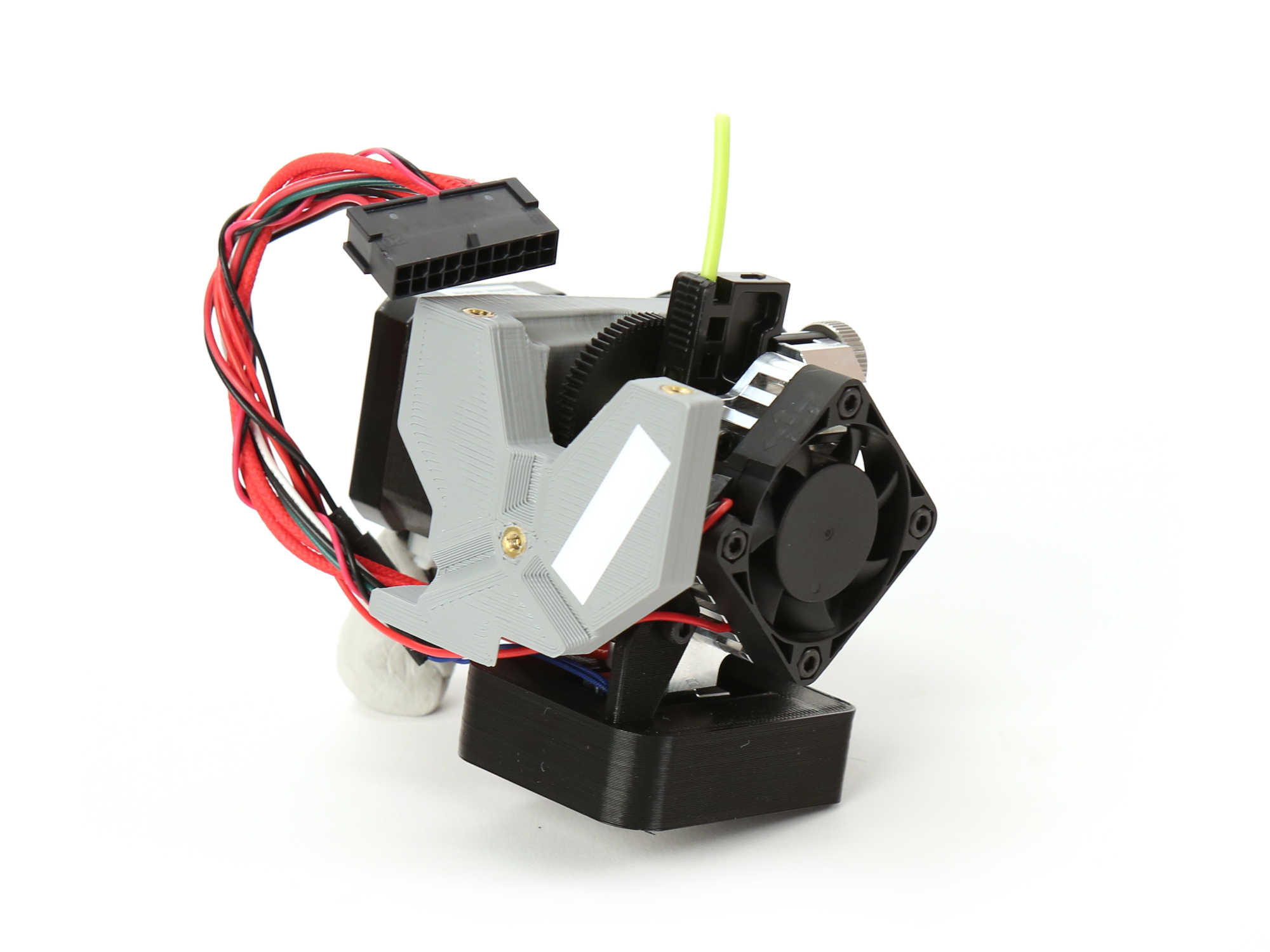

HS Tool Head | 0.8 mm

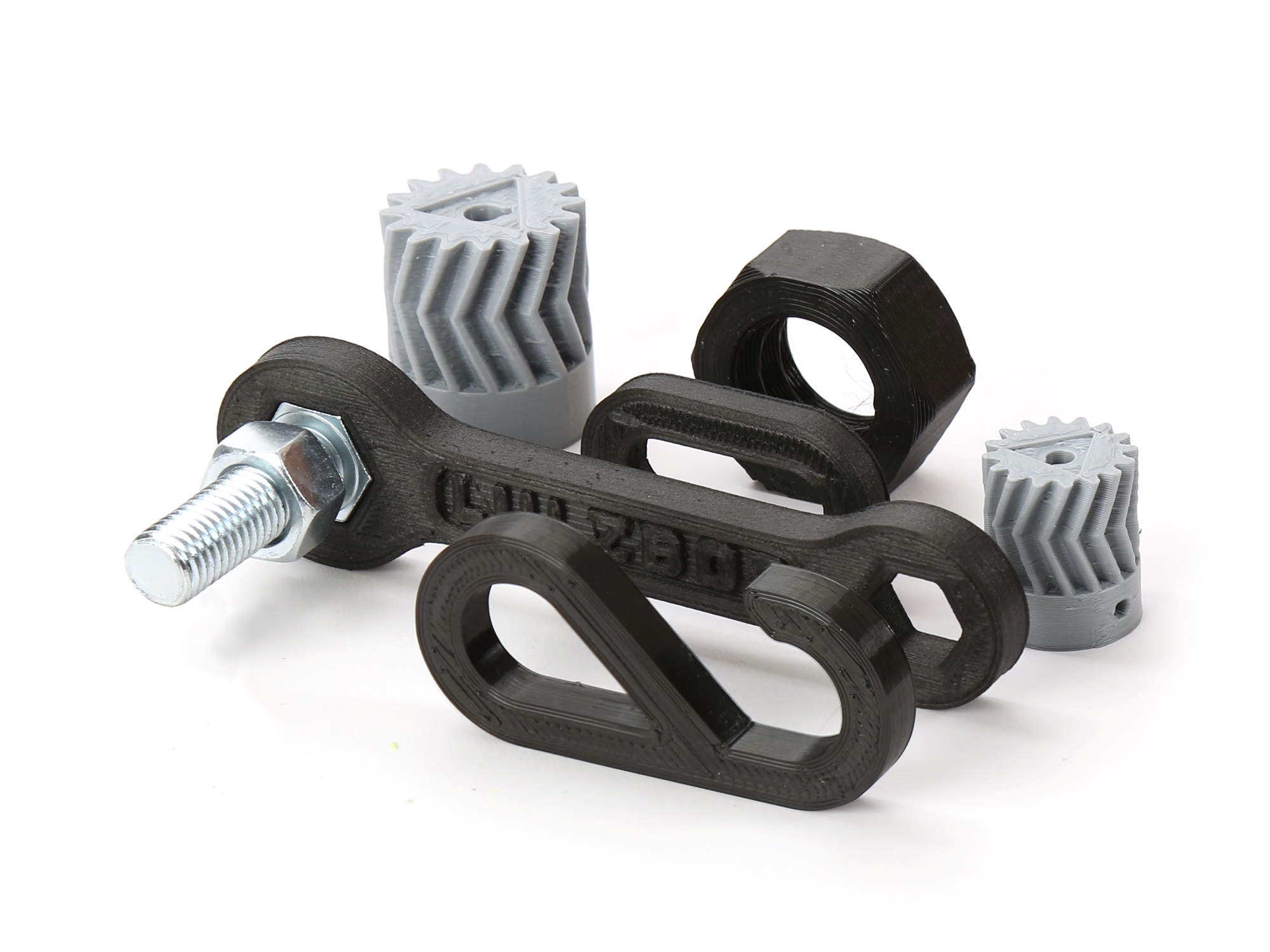

The LulzBot HS Tool Head is purpose-built for high-strength 3D printing applications utilizing durable industrial composites and is ideal for engineers needing strong parts and faster printing times. The ability to create functional jigs, fixtures, and prototypes on-site in a matter of hours significantly reduces lead time and cost.
Featuring a hardened steel nozzle and extruder hobb, this 3D printer extruder head is capable of printing high-strength composite polymers on par with PEEK's tensile strength (15,200 psi - ASTM638). These polymers are used in a wide range of high-demand applications, from structural components to the automotive industry.
Parts printed with these composites have higher impact resistance, resist deformation, while retaining strength in harsh and demanding environments. Industrial materials like PA-CF Low Warp combine strength and dimensional stability (less than 2% elongation at break - ASTM638) with the ability to perform in higher operating temperatures up to approximately 120° C (248° F).
Filament Tension Settings
Tool Head Specifications | |
Extruder Type | Single Extruder 🔗(Legacy) |
Filament Diameter | 2.85mm |
Maximum Flow Rate | Test Data Unavailable |
Flow Testing | Test Data Unavailable |
Nozzle Diameter | 0.8mm Hardened Steel |

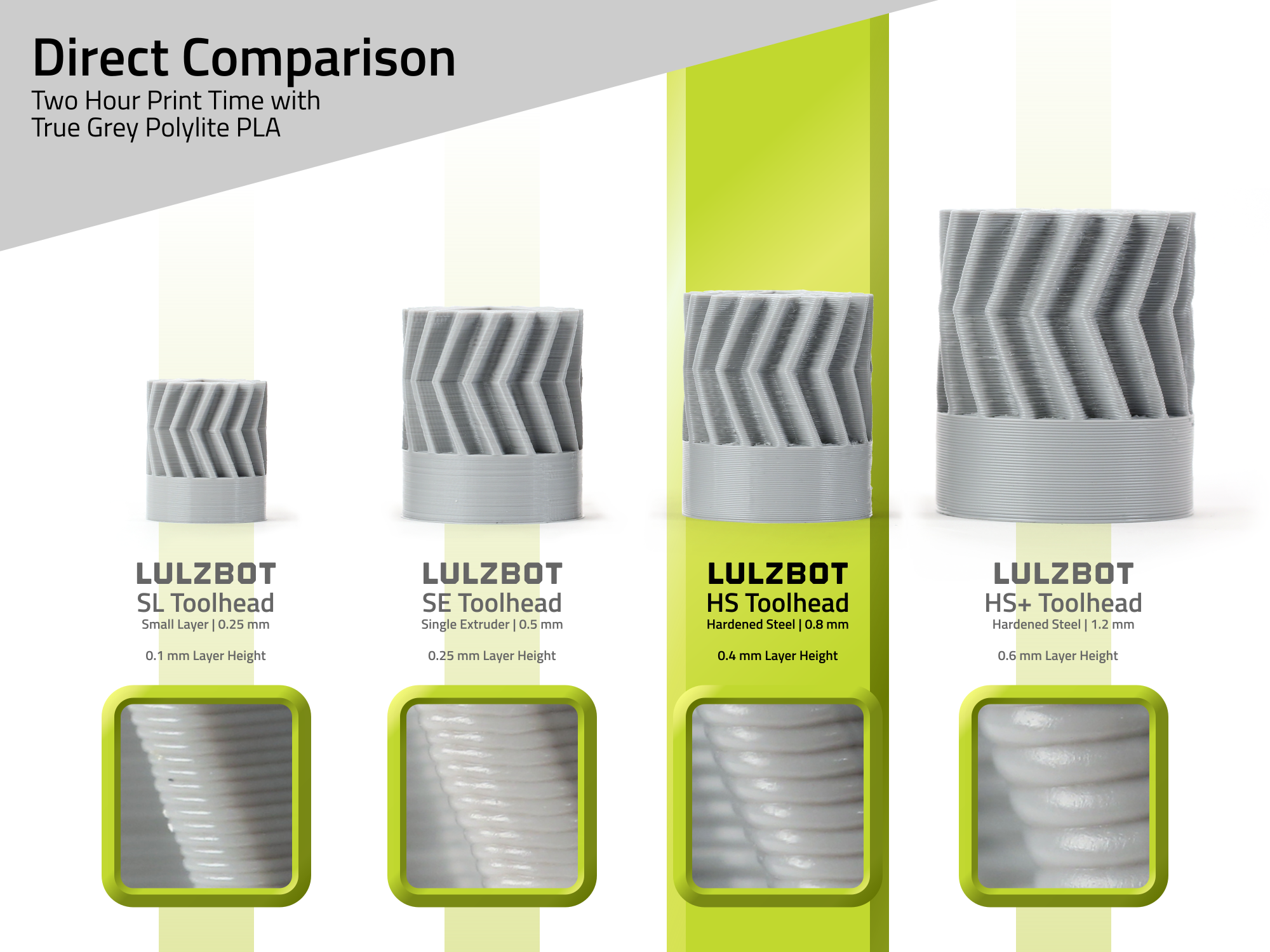

Nozzle Layer Height Range | 0.4mm (400 microns) to 0.6mm (600 microns) |
Nozzle Swapping | Not Supported |
Swappable Layer Height Range | Not Supported |
Maximum Hot End Temperature | 290°C (554°F) - Firmware Limited |
Compatible Filaments | 🔗 PLA, TPU, ABS, PETg, PVB, Nylon, PC, and others below 290°C |
Filament Tension Method | Adjustable via Knob, Spring Loaded Idler |
Extruder Tension Method | Direct-Drive, Gear & Idler |
Extruder E-Steps | 420 steps/mm |
Leveling System Compatibility | Automatic 5V Circuit, Automatic BLTouch |
PTFE Guide Tube Attachment | 3D Printed Clamp |
Tool Head Weight | 609g (21.5oz) |
Tool Head Warranty | 90-Days |
Country of Origin | USA |
Construction Materials | |
Nozzle Material | Hardened Steel |
Heater Block Material | Aluminum, Volcano Configuration |
Heat Break Material | Stainless Steel |
Fan Shroud and Mount Material | 🔗Polymaker ABS |
Cold Block and Heat Sink Material | Aluminum |
Drive Gear Material | Plastic Drive and Hardened Steel Hobb |
Extruder Motor Size | 48mm, 1.8° NEMA 17 Stepper |
Heater Cartridge | 24V, 40W |
Temperature Sensor | 🔗100k Semitec NTC Thermistor |
Part Cooling Fan | 24V DC Blower Fan |
Heat Sink Fan | 5V DC Axial Fan |
Compatible 3D Printers | |
TAZ 8 | Not Supported |
Workhorse | Workhorse |
Mini Platform | Mini 2 |
SideKick | SideKick 747 |
TAZ Pro Platform | Pro, Pro S, Pro XT |
