Bio Printer, FRESH™ certified
Feel free to contact us at 701-809-0800 (ext. 1) or email us at sales@lulzbot.com.
We're here to assist you!

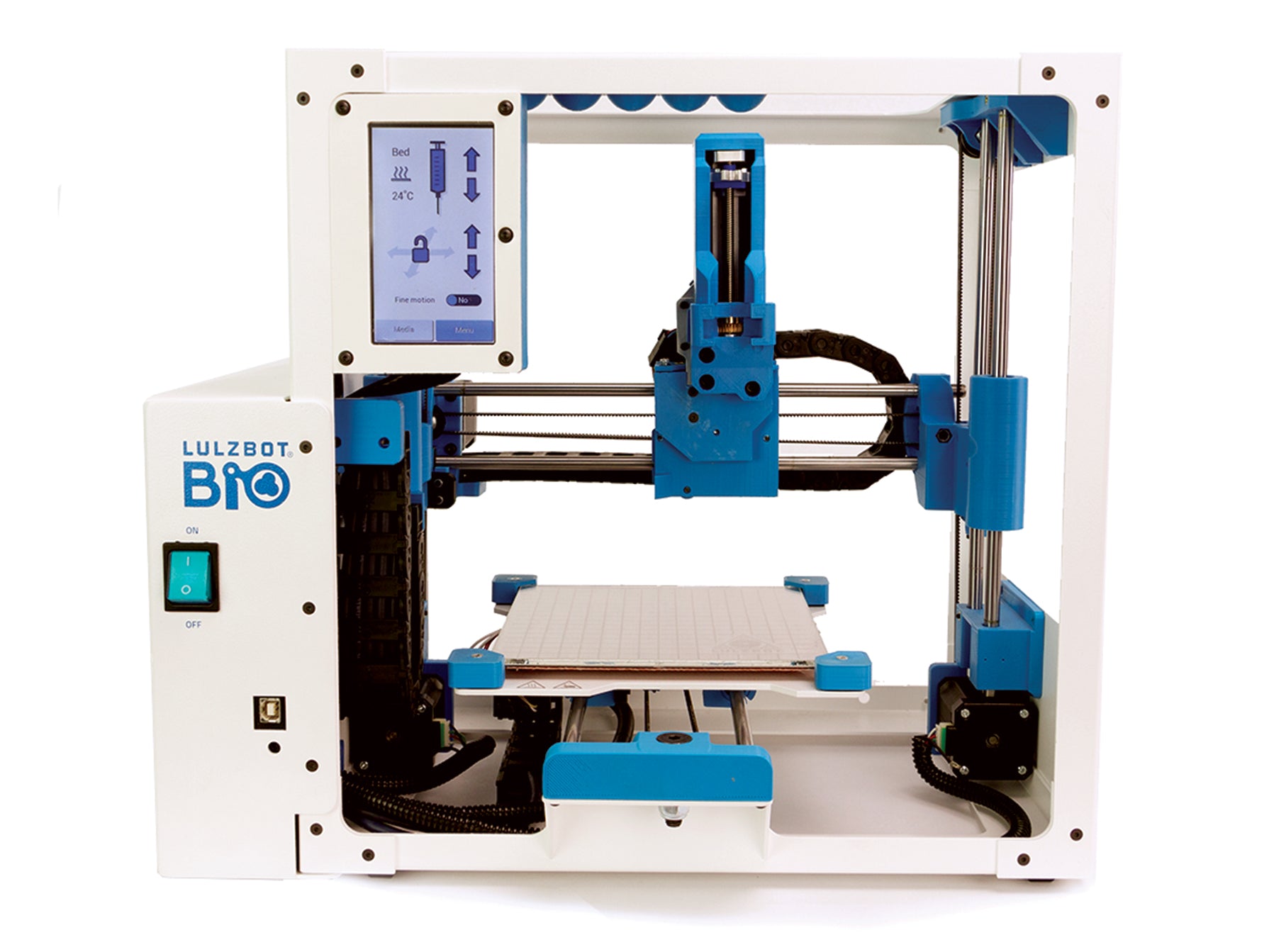

The LulzBot Bio is a FRESH™ certified bioprinter ready to print bioinks, unmodified collagen, and other soft materials for pharmaceutical/cosmetic testing, tissue engineering, regenerative medicine, and so much more.
- Ready-to-print bioinks, unmodified collagen, and other soft materials
- Easy, high-detail results
- Configurable for fast and ever-changing innovation

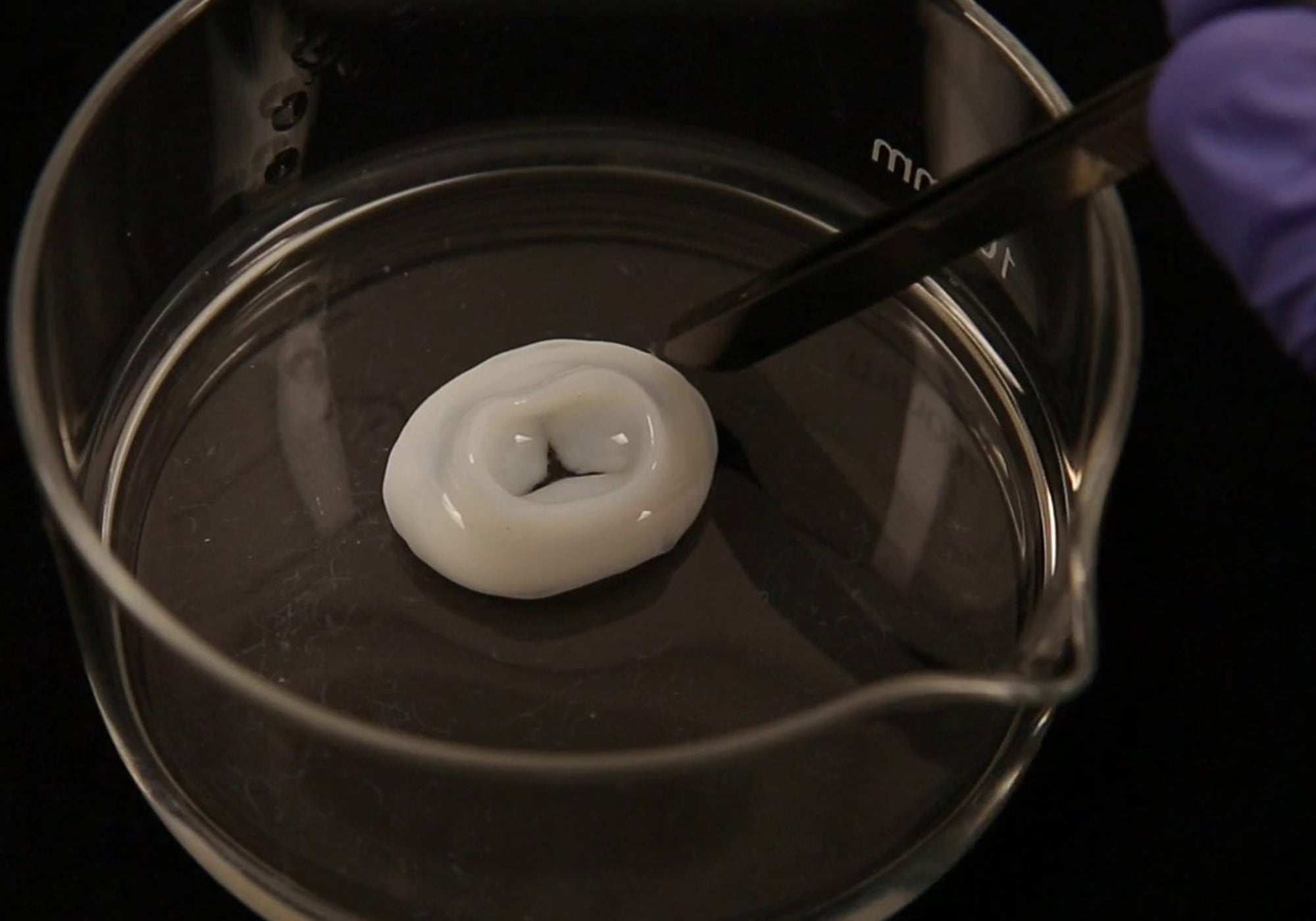

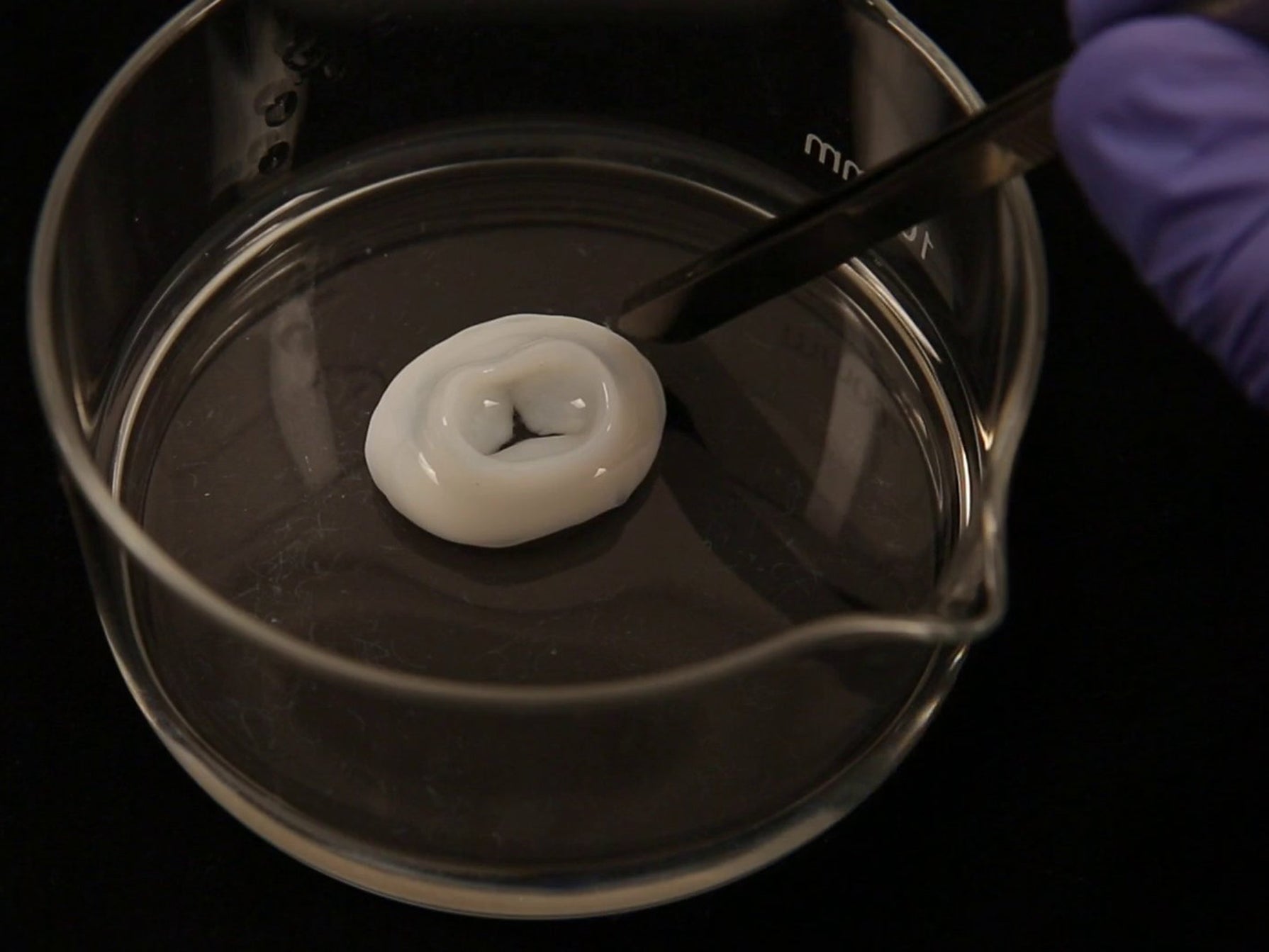

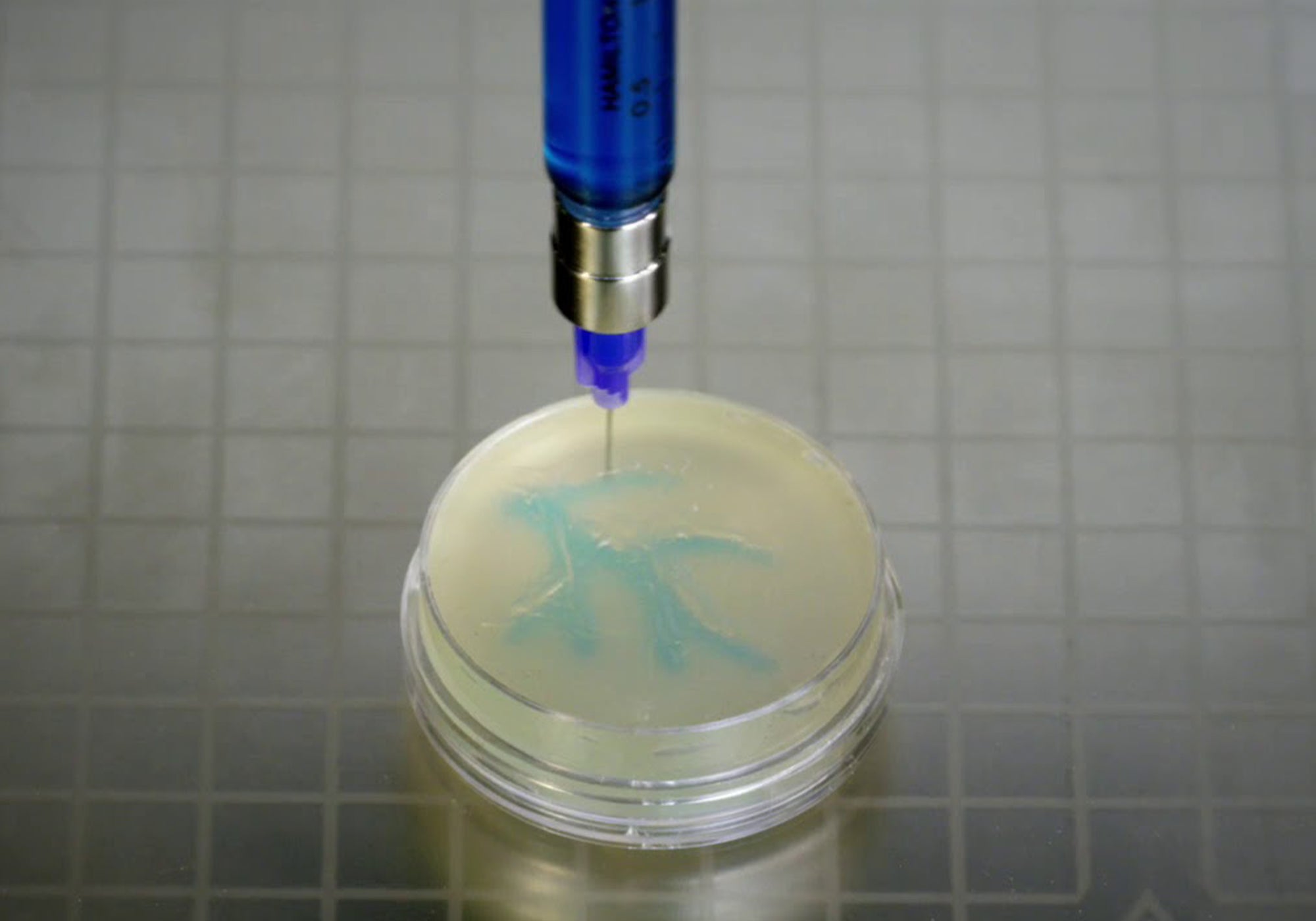

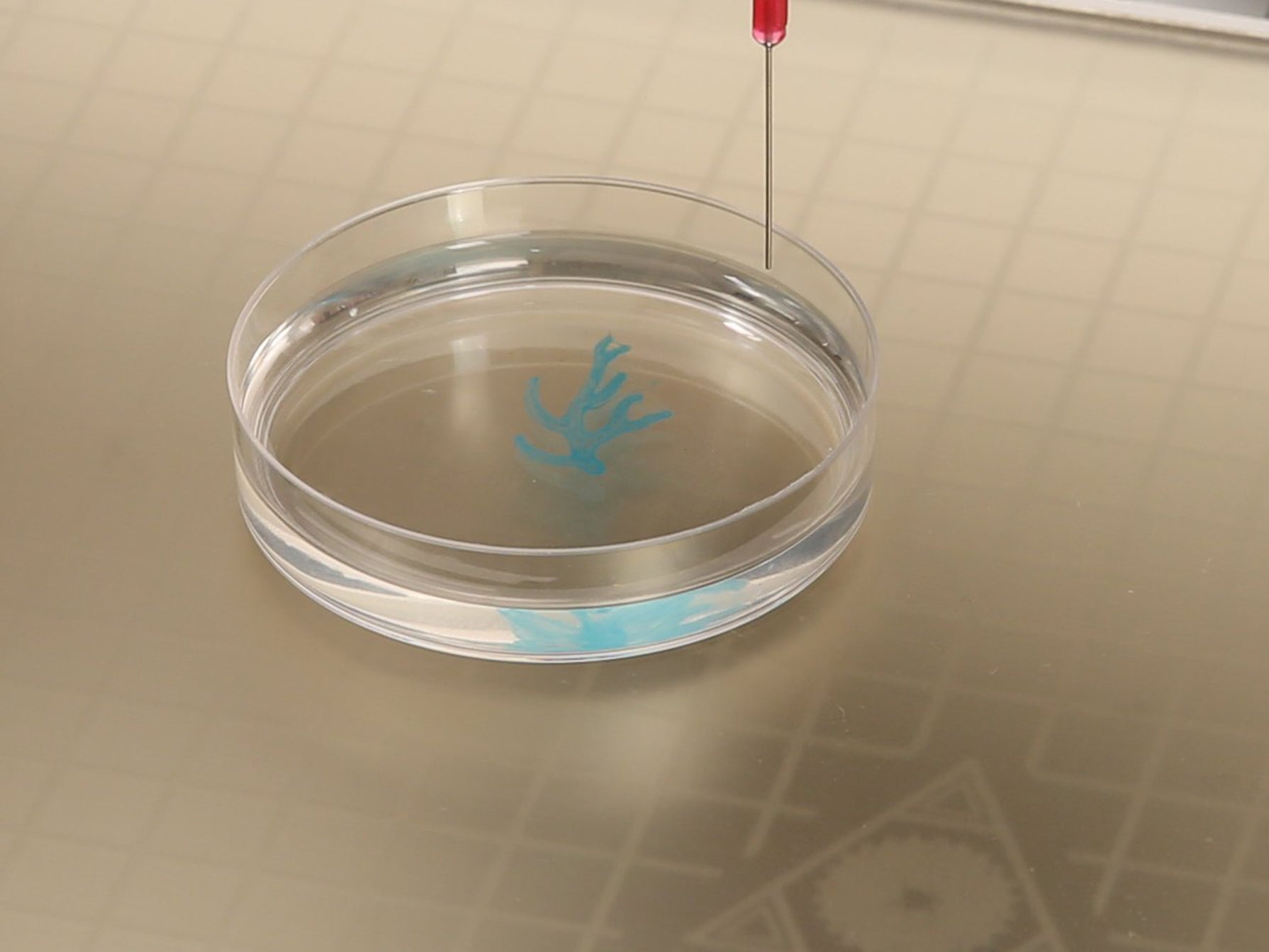

The LulzBot Bio is optimized for Freeform Reversible Embedding of Suspended Hydrogels (FRESH™) printing. Out of the box, users can print real, unmodified collagen, alginate, and other soft materials. This brings researchers closer than ever before to recreating human physiology for in vitro testing and regenerative medicine. Combined with an ultra-precise syringe pump extruder, the Bio is ready for a wide variety of bioprinting applications, from creating multi-scale vasculature to fully functional heart tissue and more.
Bio Specifications | |
3D Printing Technology | FRESH™ Certified, Fluid Deposition Fabrication (FDF) |
Build Volume | 160 x 160 x 89* mm (6.30 x 6.30 x 3.5* inches) |
Standard Tool Head Model | 🔗2.5 mL Gastight Syringe |
Equipped Layer Height Range | 0.05mm (100 microns) to 0.08mm (400 microns) |
Needle Diameter | 50, 25 gauge and 50, 30 gauge dispensing needles included |
Maximum Hot End Temperature | - |
XYZ Positional Resolution | 10, 10, <5 micron |
Movement System | CoreXZ - GT2 Belt Drive, Smooth Rails X,Y, & Z |
Maximum Travel Speed | 200 mm/s - Firmware Limited |
Print Bed Heater | 109W 24V Silicon |
Print Bed Material | Heated Borosilicate Glass |
Maximum Print Bed Temperature | 120°C (248°F) |
Filament Diameter Compatibility | - |
Filament Sensor | - |
Mainboard | Einsy Retro |
Firmware | Marlin |
Bed Leveling System | - |
Calibration | Manual Calibration |
Power Supply | 150W 24V Delta, Auto-Switching |
Power Input | 100VAC-240VAC |
Slicer Software Recommendation | 🔗Cura LE (LulzBot Edition) |
OS Compatibility | Windows, macOS, Linux |
Supported File Formats | STL, OBJ, X3D, 3MF |
Operating Temperature Range | 41°F to 113°F (5°C to 45°C) |
Supported Print Materials | FRESH Certified open material system with ready-to-print profiles for collagen and sodium alginate |
Enclosure | - |
Connectivity Options | USB Serial, Includes 8GB SD Card for Standalone Printing |
Certifications | ET/UL, CSA, Fresh, OSHWA |
Warranty | 🔗1-year standard with options for extended warranties |
Country of Origin | USA |
- Quick Start Guide ➡
- Preparing LifeSupport™: Video | Print
- Sodium Alginate Preparation: Video
- LulzBot Bio Source Files ➡
Choose options









Machine Features

Heated Bed

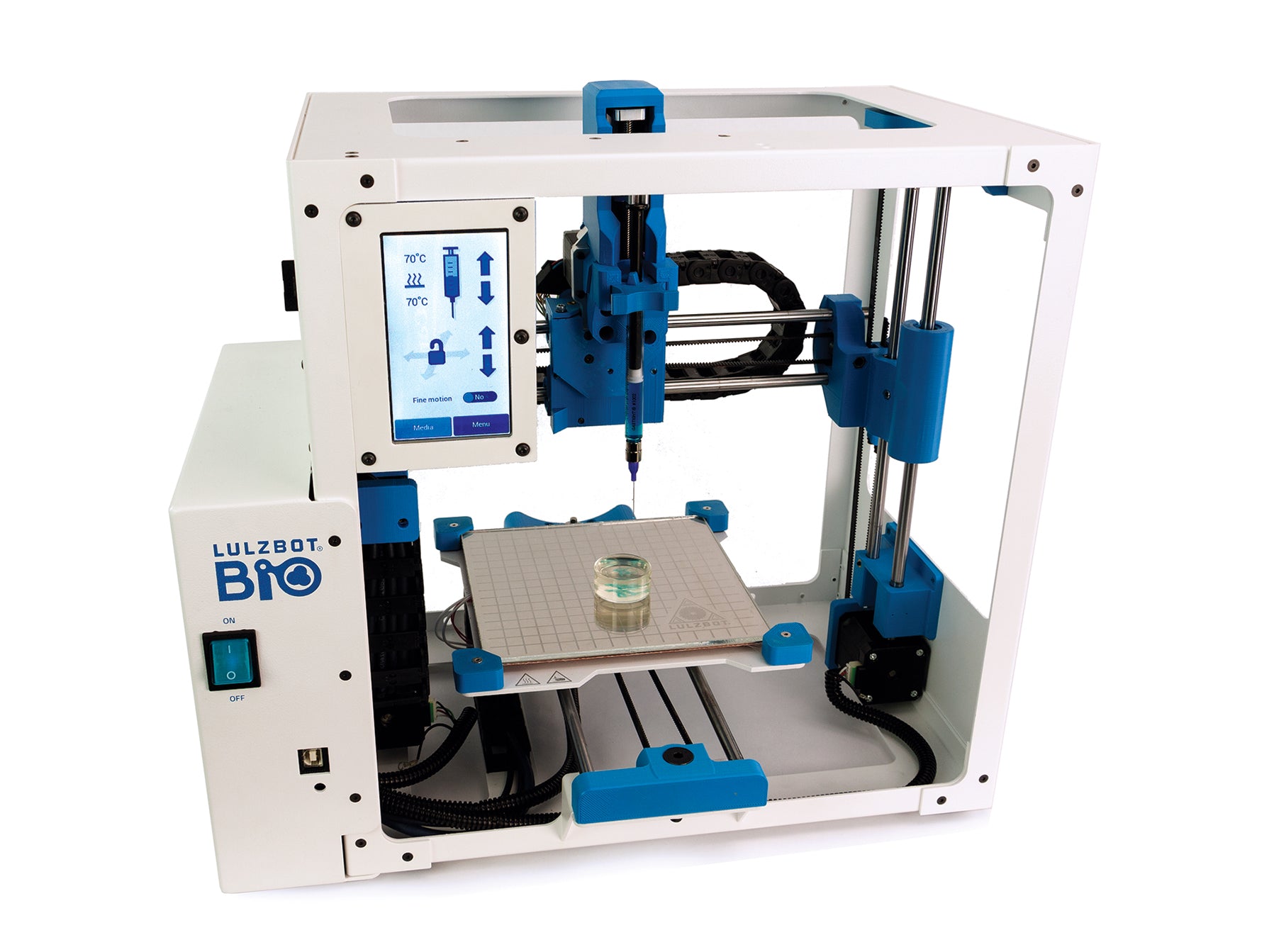

The LulzBot Bio's variable temperature heated bed allows full control of environmental conditions during printing, ensuring the integrity of the print from start to removal.

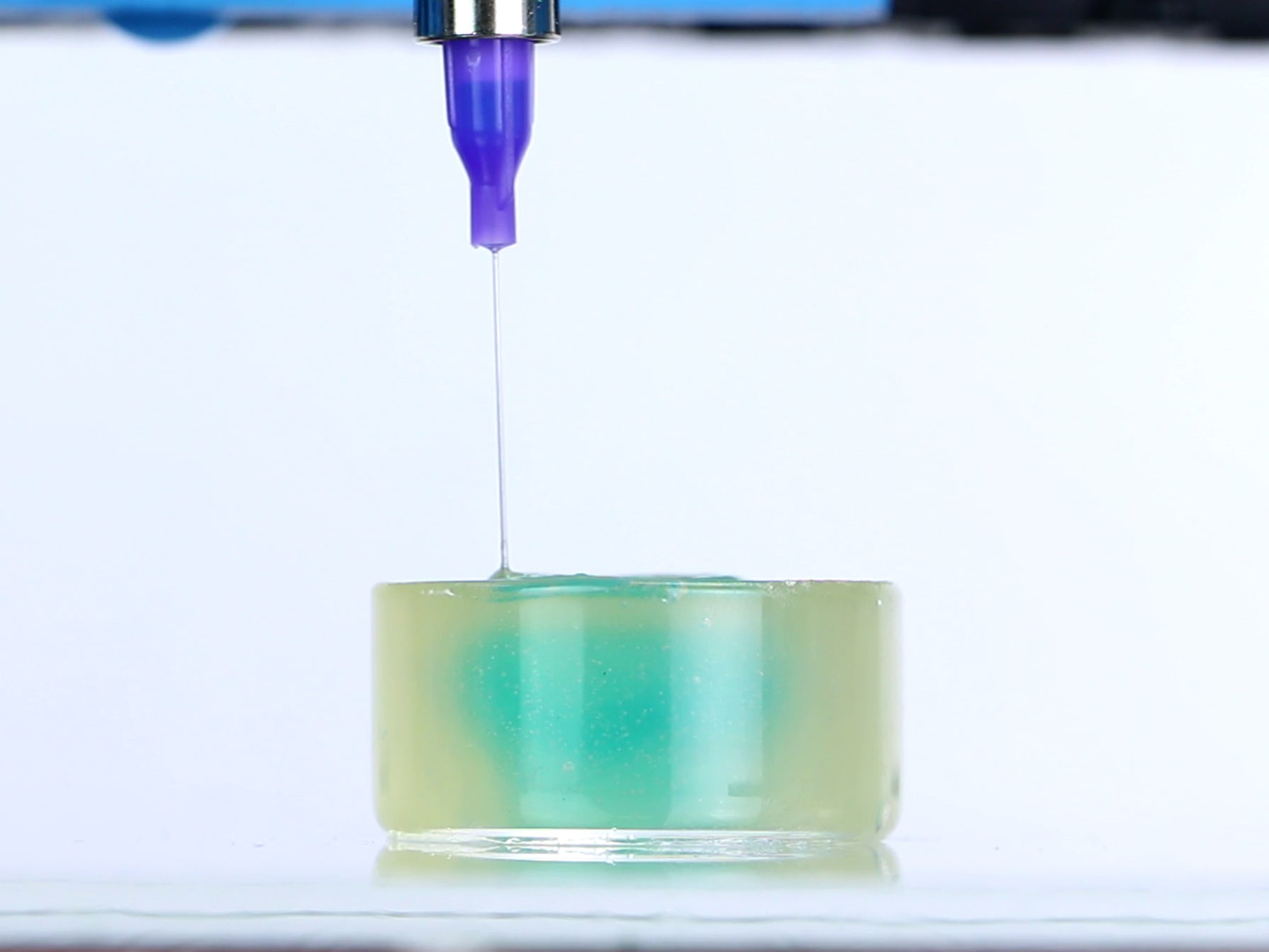

High-Detail Bioprinting

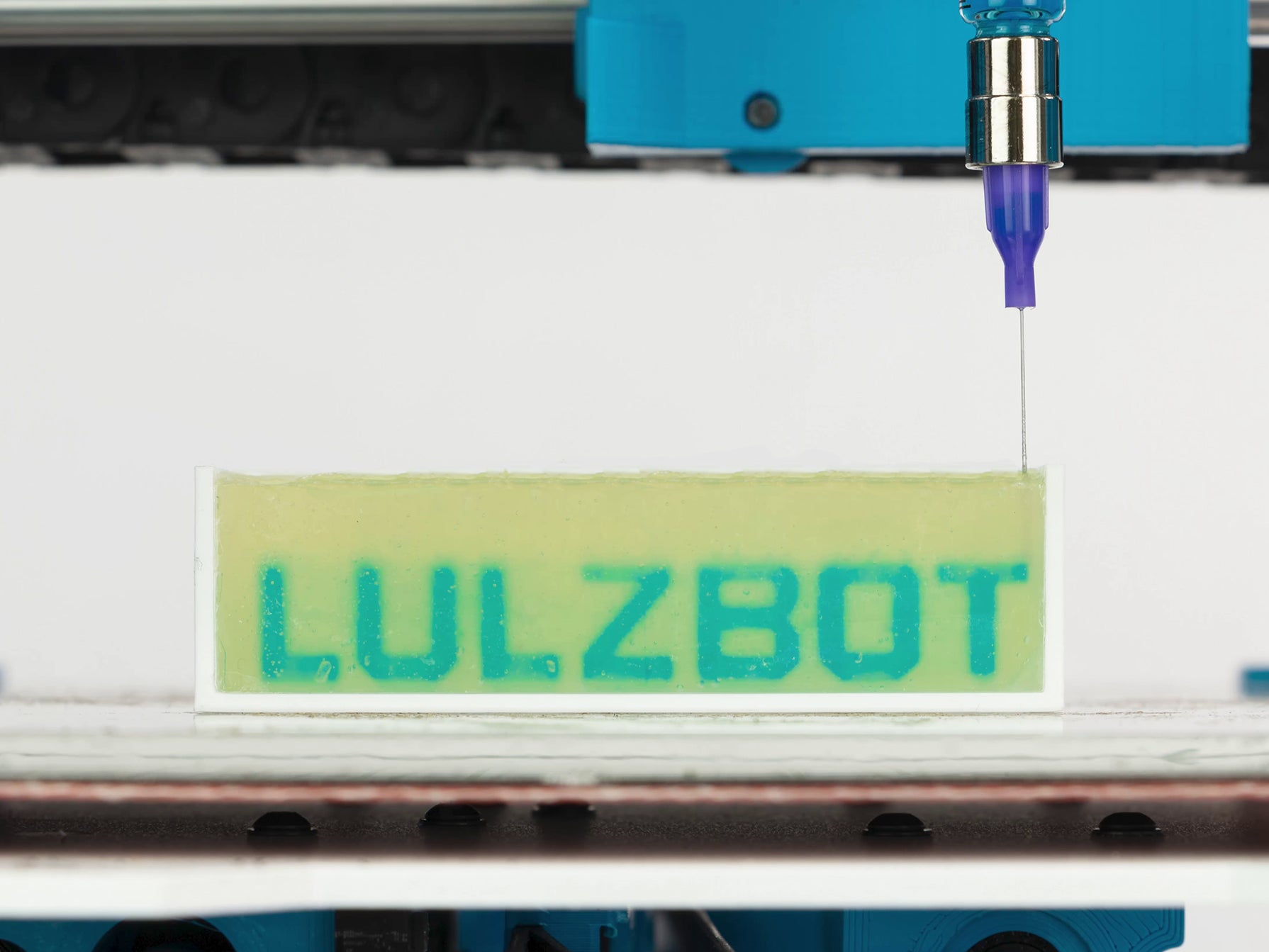

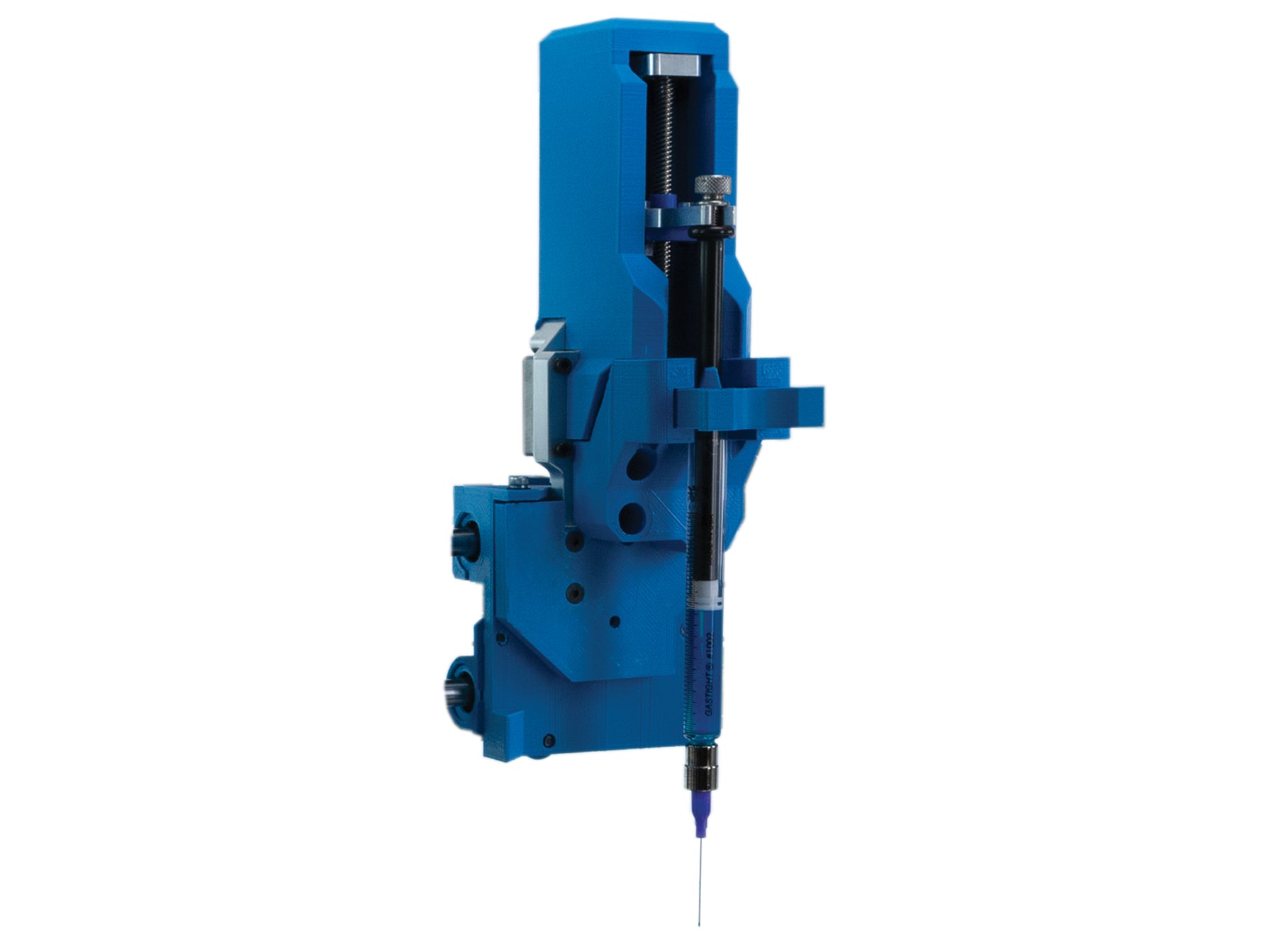

The syringe pump extruder design allows for precise control of material extrusion, enabling printing of high-detail objects in a wide range of materials with varying viscosities.

Material Options
The LulzBot Bio features an open materials system which includes ready-to-print profiles for alginate and unmodified collagen. With a configurable syringe pump system and extrusion settings, the Bio is easily adjustable for new materials and processes.

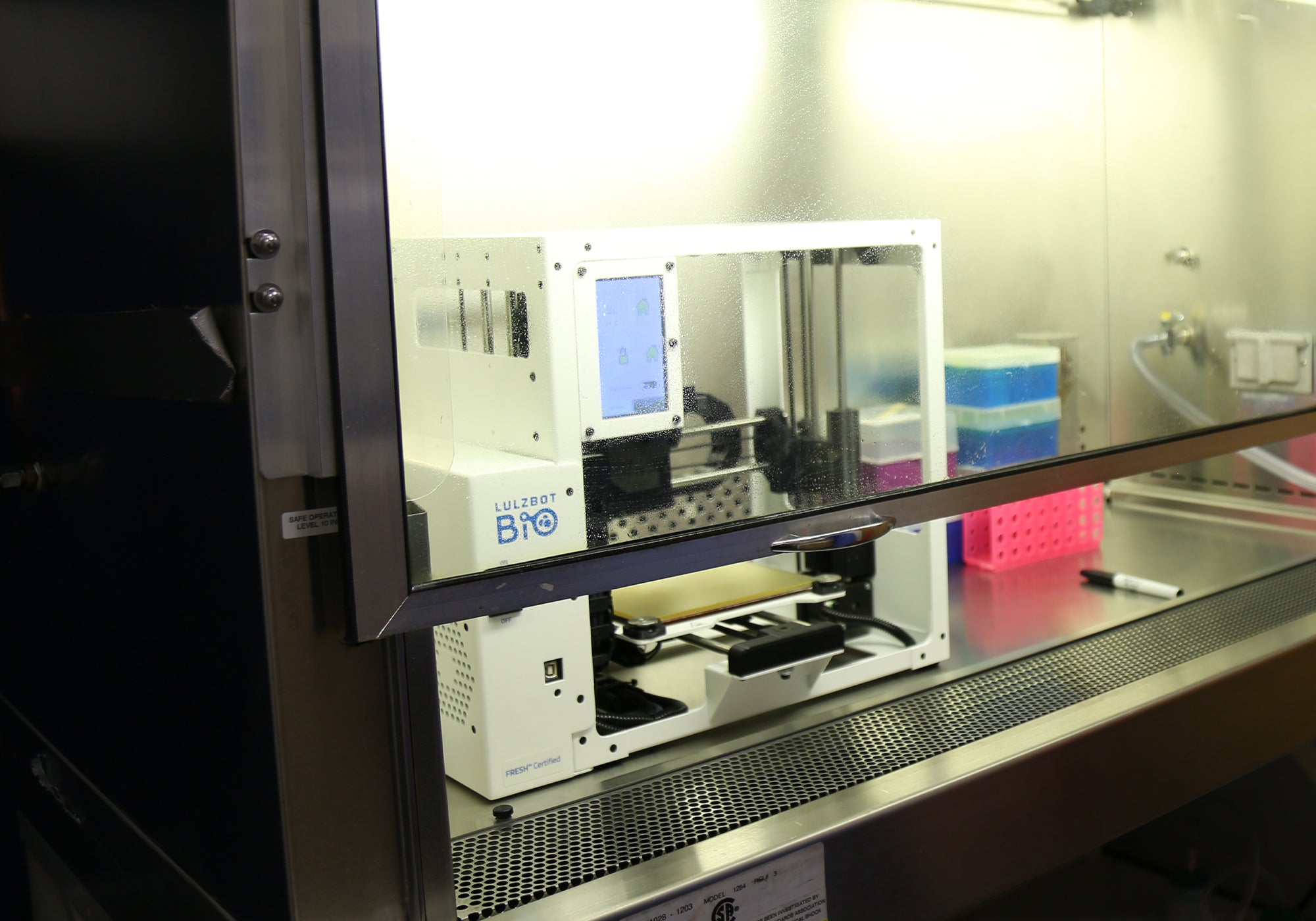

Designed for the Lab
The small footprint and large build volume easily fits within laminar flow cabinets or on the lab countertops. The rugged design can easily be sterilized for printing cells using ethyl alcohol and UV lights.

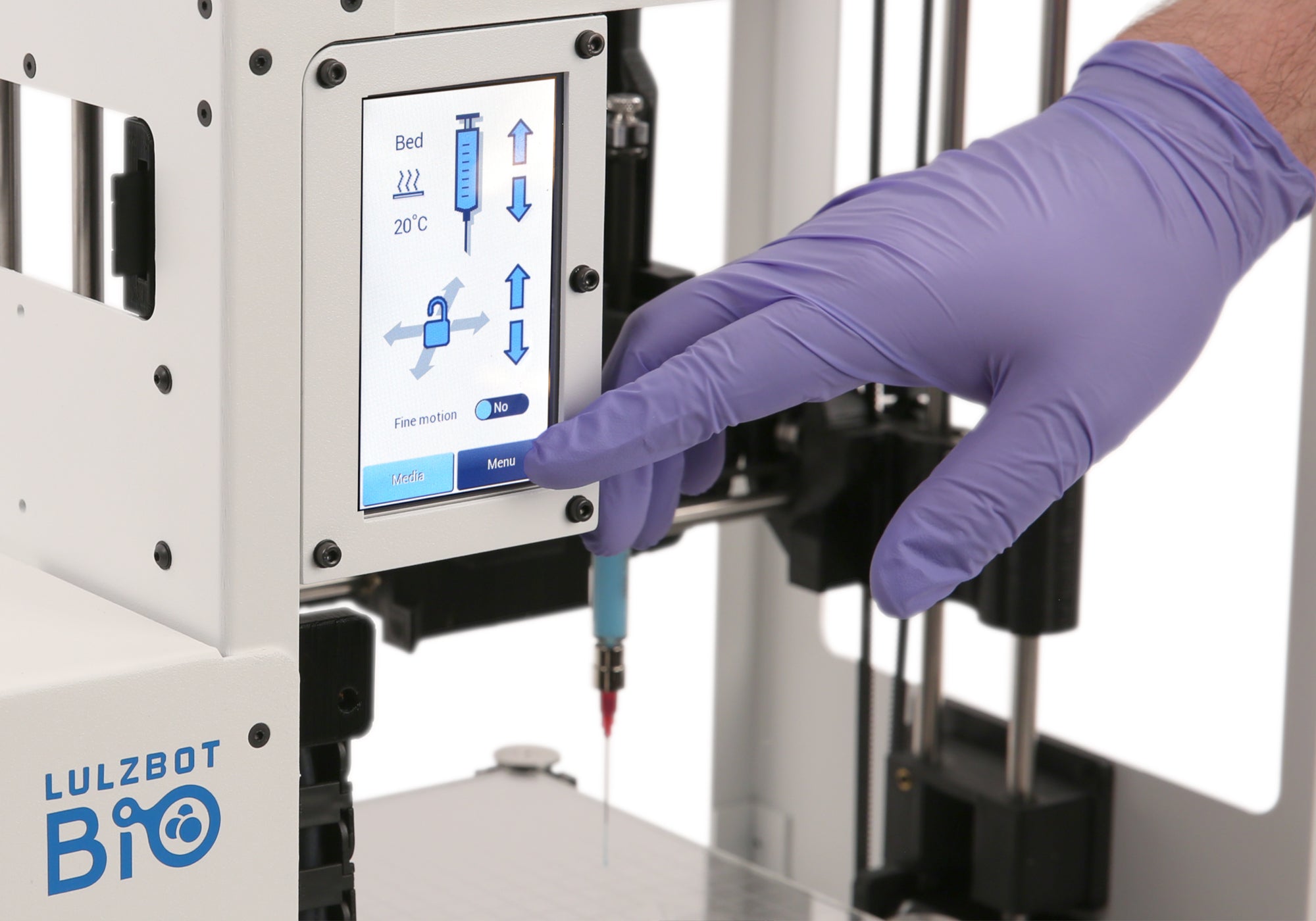

Easy-To-Use Interface
The Bio features a 4.5" glove-friendly touch screen and SD card slot for easy operation without the need to be tethered to a computer.

Open Source, Open Possibilities
Innovation in research demands flexibility. The Bio's FRESH™ Certified and Open Hardware Design gives researchers the keys to innovate, allowing machine capabilities to be easily adjusted for new materials and processes. the Bio's adaptable configuration can be modified to extrude:
- Other components of the extracellular matrix (hyaluronic acid, fibrin)
- Photo-curable resins
- Thermosets
- Silicon and epoxies
- And more.....
