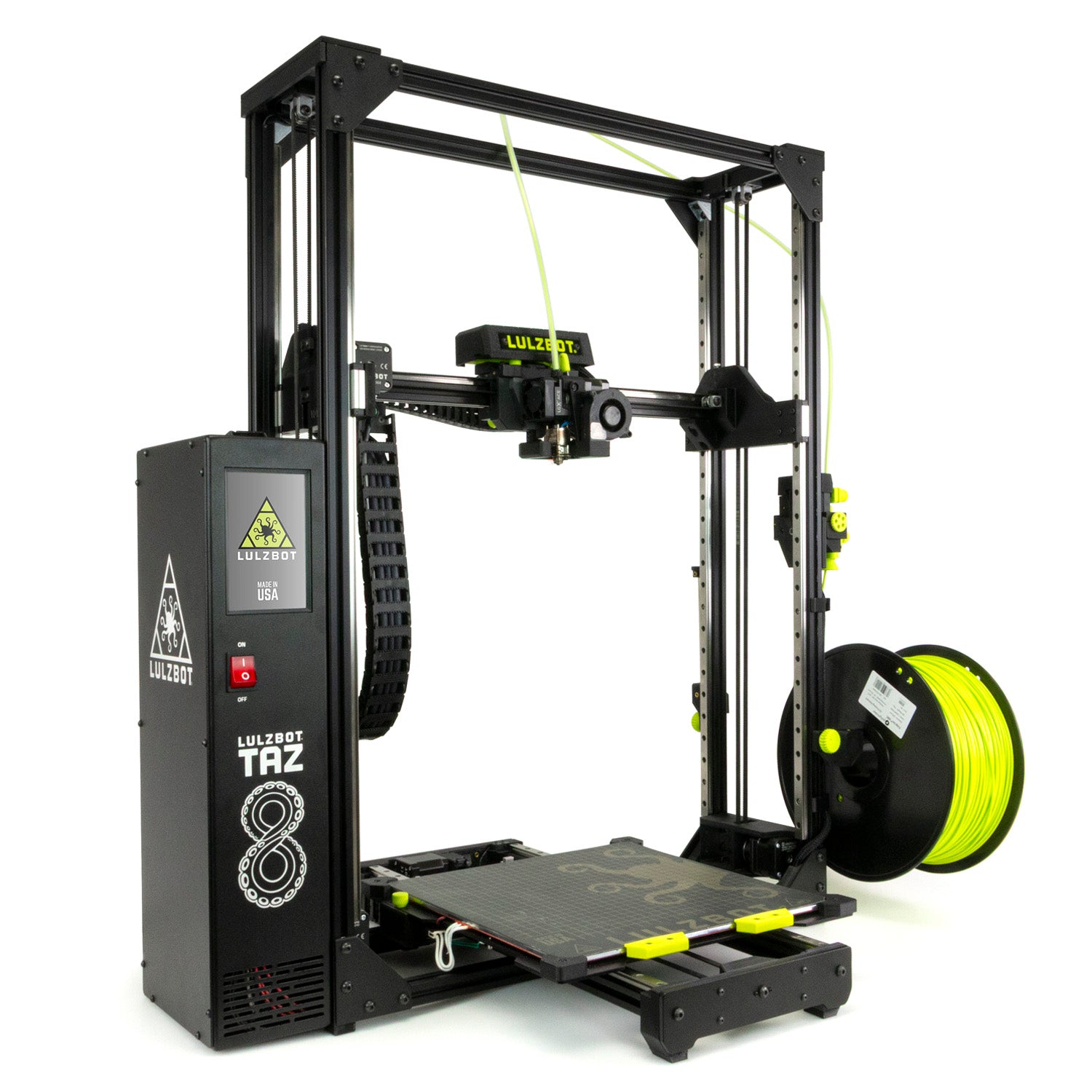

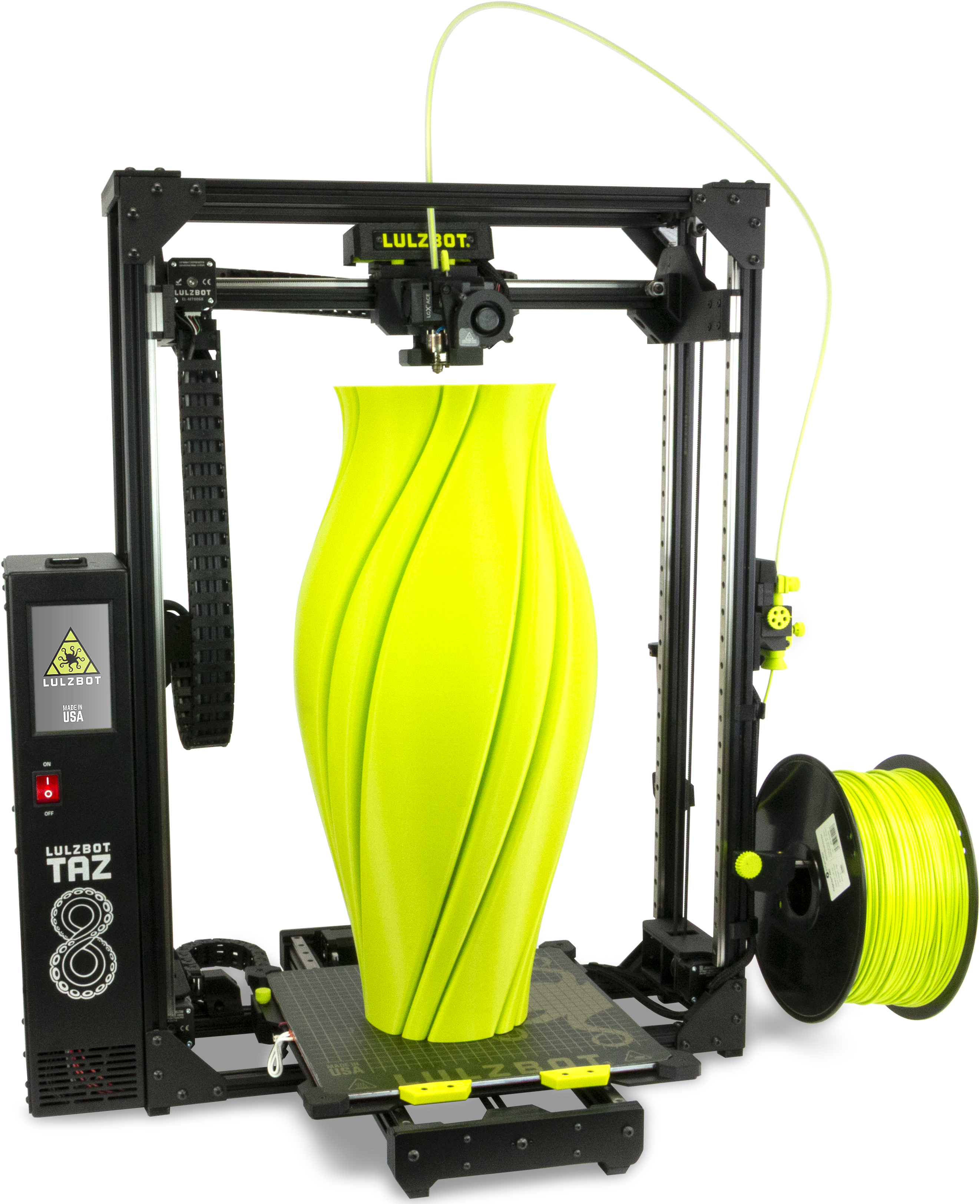

LulzBot TAZ 8 XT: Built to Last, Designed to Perform
Aim high, print tall, and let the LulzBot TAZ 8 XT take your 3D printing to new heights!
-
Engineered for Reliability: Built to deliver in environments where consistency and performance are key.
-
Durable Build: Constructed with high-grade materials to endure tough industrial use.
- Simplified Maintenance: Advanced filament monitoring and optimized wiring harnesses reduce downtime and streamline operations.
- Made in the USA: Designed, manufactured, and supported in Fargo, North Dakota, ensuring quality and ready access to parts and services.
Empower Your Operations: The LulzBot TAZ 8 XT is built for durability and designed to deliver. It's a no-nonsense solution for professionals who need a reliable, versatile 3D printing tool. Upgrade to the TAZ 8 XT and bring dependable, efficient technology into your workflow, enhancing productivity with a tool built to last.
| TAZ 8 XT Specifications | |
| 3D Printing Technology | FFF (Fused Filament Fabrication) |
| Max Print Volume | 295 x 295 582 mm3 (11.5 x 11.5 x 22.9 in3) |
| Standard Tool Head Model | 🔗Asteroid 285 |
| Equipped Layer Height Range | 0.3mm (300 microns) to 0.9mm (900 microns) |
| Platform Layer Height Capabilities | 0.05mm (50 microns) to 1.8mm (1800 microns) |
| Nozzle Diameter & Material | 1.2mm GammaMaster® Steel |
| Maximum Hot End Temperature | 290°C (554°F) - Firmware Limited |
| XYZ Positional Resolution | X and Y axes - 0.01mm (10 microns), Z axis - 0.002mm (2 microns) |
| Movement System | GT2 Belt Drive, Linear Rails X&Y, 12mm Igus SST Rods and Polymer Bushings Z |
| Maximum Travel Speed | 150 mm/s - Firmware Limited |
| Print Bed Heater | 360W 24V Silicon |

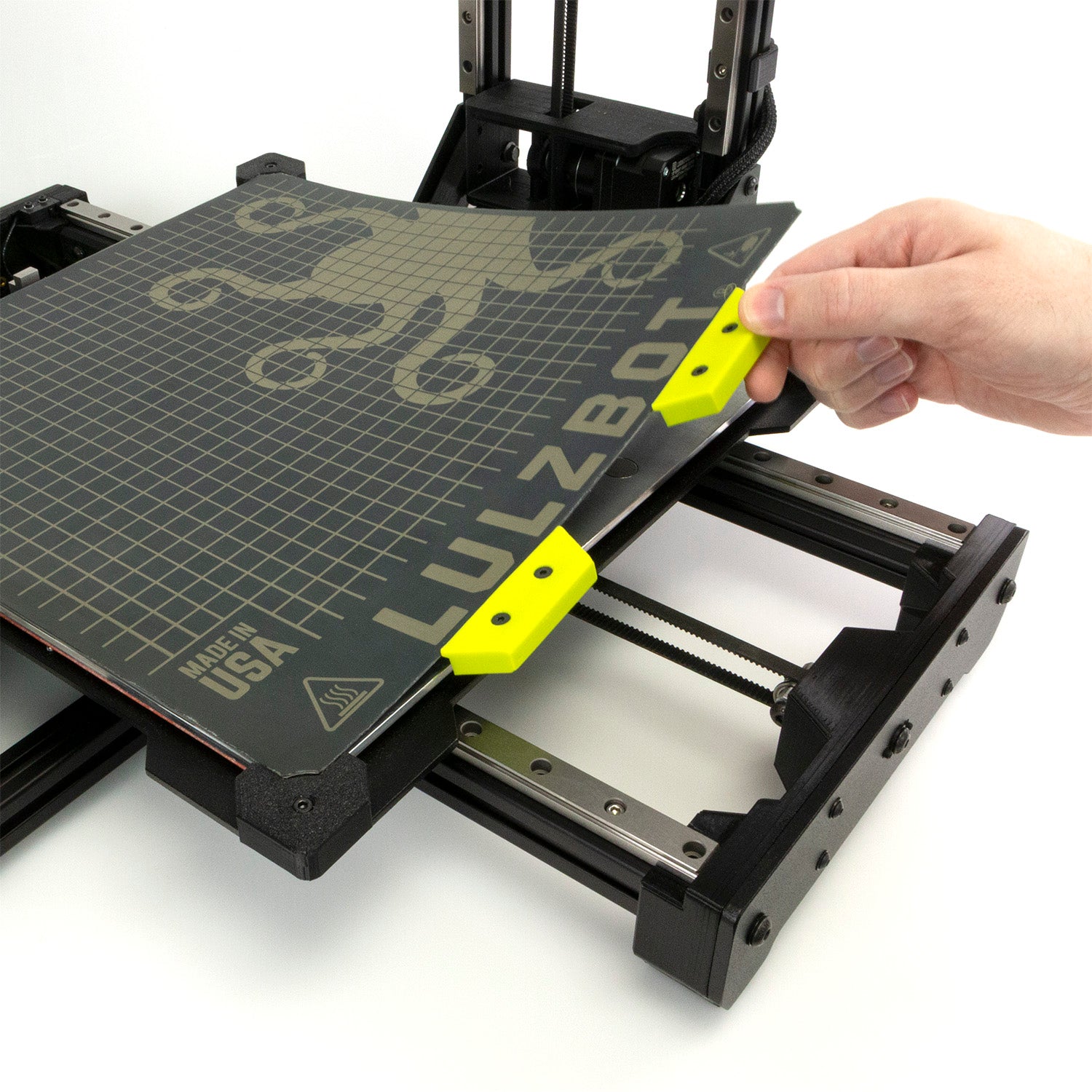

| Print Bed Material | Magnetic Flex Bed System |
| Maximum Print Bed Temperature | 80°C (176°F) |
| Filament Diameter Compatibility | 2.85mm, optional 1.75mm (Tool Head Dependent) |
| Filament Sensor | Runout and Stripping Detection |
| Mainboard | 32-bit Archim 2.2b with Trinamic TMC2130 drivers and Xpand board |
| Firmware | Marlin |
| Bed Leveling System | Automatic BLTouch 32-Point Mesh |
| Calibration | Automatic X-Axis True Tramming, Z-Offset, and Backlash Compensation |
| Power Supply | 500W 24V Mean Well, Auto-Switching |
| Power Input | 100VAC-240VAC |
| Slicer Software Recommendation | 🔗Cura LE (LulzBot Edition) |
| OS Compatibility | Windows, macOS, Linux |
| Supported File Formats | STL, OBJ, X3D, 3MF |
| Operating Temperature Range | 41°F to 113°F (5°C to 45°C) |
| Supported Print Materials | 🔗PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C |
| Enclosure | 🔗Optional Accessory Available |
| Connectivity Options | USB Serial, Includes 8GB SD Card for Standalone Printing |
| Certifications | FCC |
| Warranty | 🔗1-year standard with options for extended warranties |
| Country of Origin | USA |
Choose options
Machine Features
First-Ever Active Bed Cooling
Reduce cool-down times by over 50% with Active Bed Cooling, maintaining material integrity and speeding up production cycles.
Key Benefits:
- Reduces waiting times, enhancing efficiency.
- Prevents material deformation while speeding cooldown.
Precision Linear Rails in X & Y Axes
Consistent movement along the X and Y axes with Linear Rails, enabling faster print speeds and superior print quality.
Key Benefits:
- Allows for higher accelerations, reducing print times.
- Achieves precise positioning for impeccable print results.
Next-Generation User Interface
Navigate easily with a glove-friendly resistive touch screen and intuitive menus, enhancing control and efficiency.
Key Benefits:
- Operate the printer effortlessly, even with gloves on.
- Streamlined menus for quick, easy control of your 3D printing.
Advanced Filament Monitoring
Automatically detect filament issues like runout and jams to prevent print failures and minimize waste.
Key Benefits:
- Detects issues to stop problems before they affect the print.
- Ensures efficient use of filament, saving resources and time.

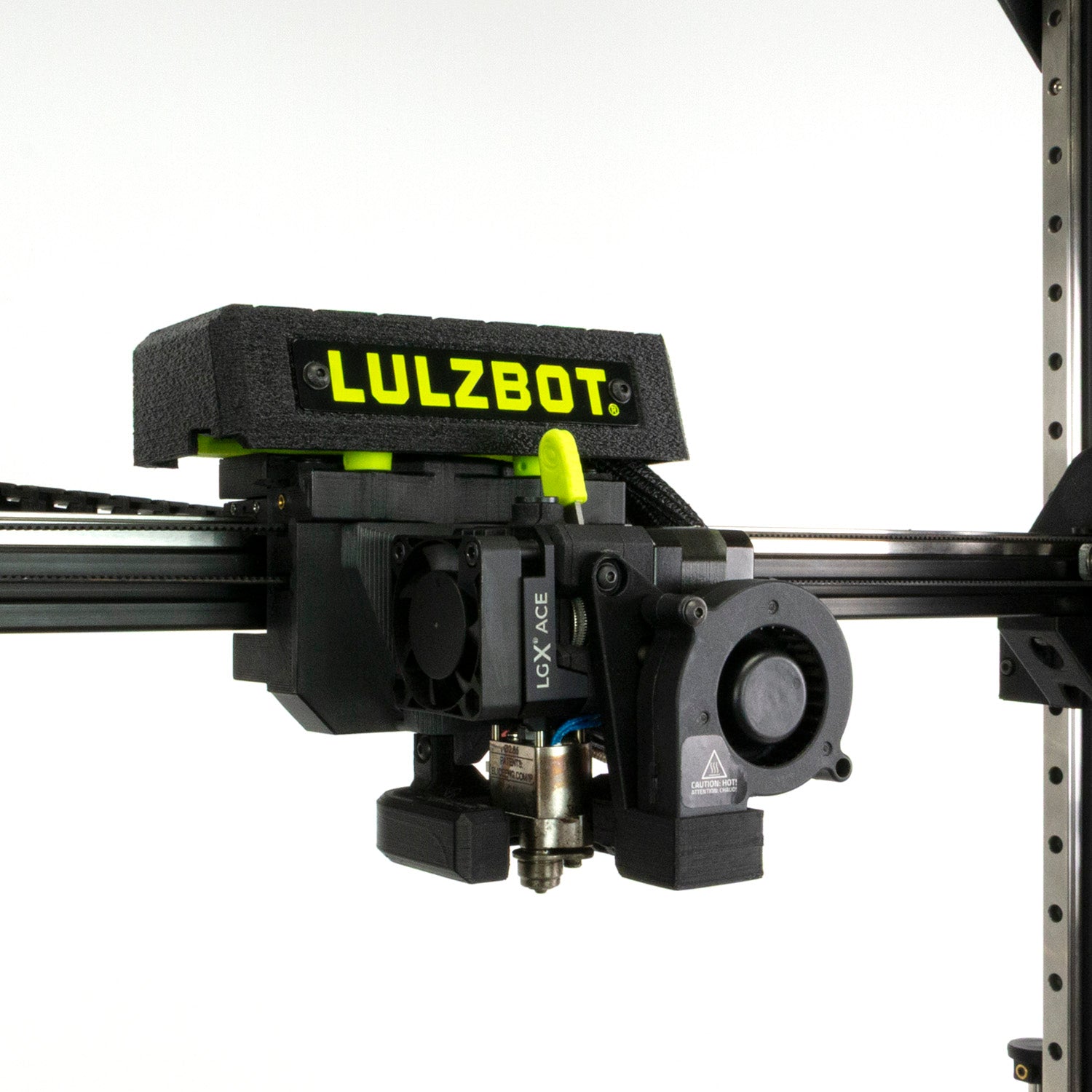

Tool-Free Tool Head Swapping
Quickly swap Tool Heads without tools using a magnetic cap and thumbscrews, reducing downtime and boosting flexibility.
Key Benefits:
- Swap Tool Heads quickly without the need for additional tools.
- Solid thumbscrews ensure each Tool Head is securely attached.
Advanced Bed Leveling
Achieve precise bed leveling with the BLTouch® probe, ensuring great first-layer adhesion and optimal print quality.
Key Benefits:
- Physical probing provides consistent leveling across the entire print bed.
- Achieves repeatable first-layers, crucial for final print quality.
Why Choose LulzBot?
Rugged Reliability
Built for industrial demands, delivering consistent results with minimal maintenance.
Made in the USA
Proudly manufactured in Fargo, ND, ensuring top-quality craftsmanship and reliable performance.
Committed Expertise
Expert support, available Monday–Friday, to keep your LulzBot 3D printer running without issue.
Versatile by Design
Adapt your LulzBot 3D printer for specialized performance and niche applications with ease.
Trusted By
Every LulzBot 3D printer includes free access to our Cura LulzBot Edition slicing software.
Concept to...
Reality.
