SideKick 747 - Premium 1.75mm

Name: SideKick 747 - Premium 1.75mm
Brand: LULZBOT
SKU: KT-PR0058NA-BG1MLRP
Price: 1495.00 USD
Availability: InStock

SKU: KT-PR0058NA-BG1MLRP

$1,495.00

For Sales Inquiries

Feel free to contact us at 701-809-0800 (ext. 1) or email us at sales@lulzbot.com.
We're here to assist you!

Explore All LulzBot 3D Printers➡

Overview

The SideKick 747 - Premium is a plug and play, out of the box ready, essential tool for every hobbyist, teacher, and professional user.

No tools necessary. You have everything you need at your fingertips to get started printing right away!

The SideKick 747 - Premium is a 3D printer that requires no Tools! We've made set-up faster by utilizing simple thumbscrews throughout the design. Even swapping Tool Heads is faster without the need find a set of allen wrenches!

This highly configurable printer allows you to easily make adjustments to your printer whenever you are looking to upgrade or try one of it's many other options.

Technical Specifications

SideKick 747 - Premium Specifications
3D Printing Technology	FFF (Fused Filament Fabrication)
Build Volume	232 x 232 x 248 mm (9.13 x 9.13 x 9.76 inches)
Standard Tool Head Model	🔗Meteor 175
Equipped Layer Height Range	0.1mm (100 microns) to 0.4mm (400 microns)
Platform Layer Height Capabilities	0.05mm (50 microns) to 1.8mm (1800 microns)
Nozzle Diameter & Material	0.5mm Brass
Maximum Hot End Temperature	290°C (554°F) - Firmware Limited
XYZ Positional Resolution	X and Y axes - 0.01mm (10 microns), Z axis - 0.005mm (5 microns)
Movement System	GT2 Belt Drive with Delrin V-Wheels and Aluminum Extrusion
Maximum Travel Speed	300 mm/s - Firmware Limited
Print Bed Heater	225W 24V Silicon
Print Bed Material	🔗Magnetic Flex Bed System
Maximum Print Bed Temperature	110°C (230°F)
Filament Diameter Compatibility	1.75mm (Standard), 2.85mm (Optional)
Filament Sensor	Runout Detection
Mainboard	8-bit Einsy Retro with Trinamic TMC2130 drivers for quiet printing
Firmware	Marlin
Bed Leveling System	Automatic BLTouch 16-Point Mesh
Calibration	Automatic X-Axis Tramming, Z-Offset Wizard
Power Supply	350W 24V Mean Well, Manual Switching
Power Input	100VAC-240VAC
Slicer Software Recommendation	🔗Cura LE (LulzBot Edition)
OS Compatibility	Windows, macOS, Linux
Supported File Formats	STL, OBJ, X3D, 3MF
Operating Temperature Range	41°F to 113°F (5°C to 45°C)
Supported Print Materials	🔗PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C
Enclosure	-
Connectivity Options	USB Serial, Includes 8GB SD Card for Standalone Printing
Certifications	-
Warranty	🔗1-year standard with options for extended warranties
Country of Origin	USA

What's Included

LulzBot SideKick 747 - Premium 3D Printer
Premium Tool Kit
1kg Polylite LulzBot Green PLA
LulzBot 8GB SD Card
LulzBot Die-Cut Sticker
Standard 1 Year Warranty (Extended Warranties Available)
Unlimited Access to LulzLessons Curriculum
Unlimited Downloads of Cura LE Software

Resources & Documentation

Support Page, Digital Files, Open Hardware Assembly Instructions (OHAI) & More!

SideKick 747 - Premium 1.75mm

$1,495.00

Machine Features

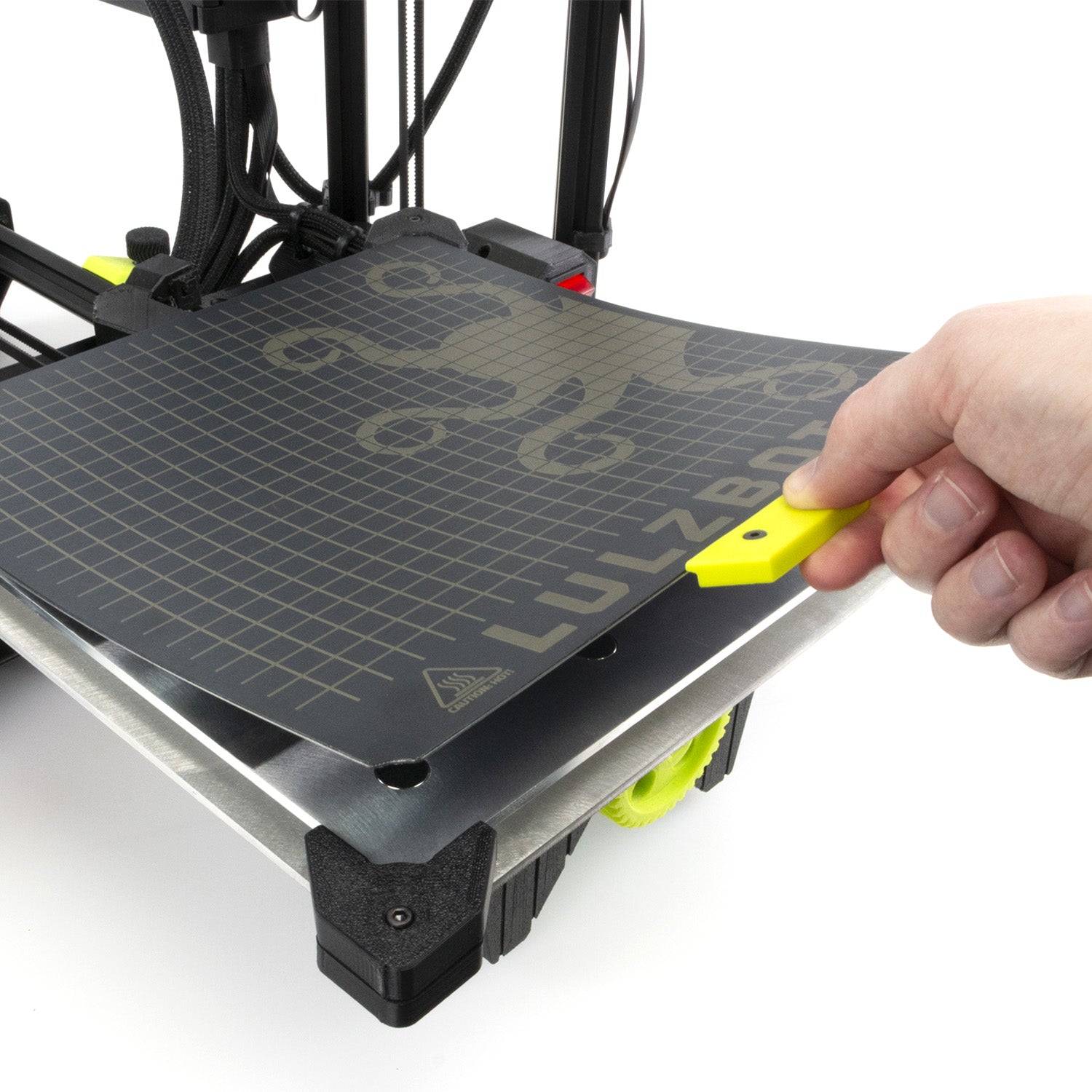

Magnetic Flex Sheet

Its machined aluminum magnetic bed comes with a Laminated PEI blue spring steel top sheet, a durable and flexible alternative to glass beds. Equipped with neodymium magnets, it securely holds the print sheet while allowing for easy removal.

Automatic Bed Probing

BLTouch® auto bed leveling sensor generates corrective mesh for improved first layer quality.

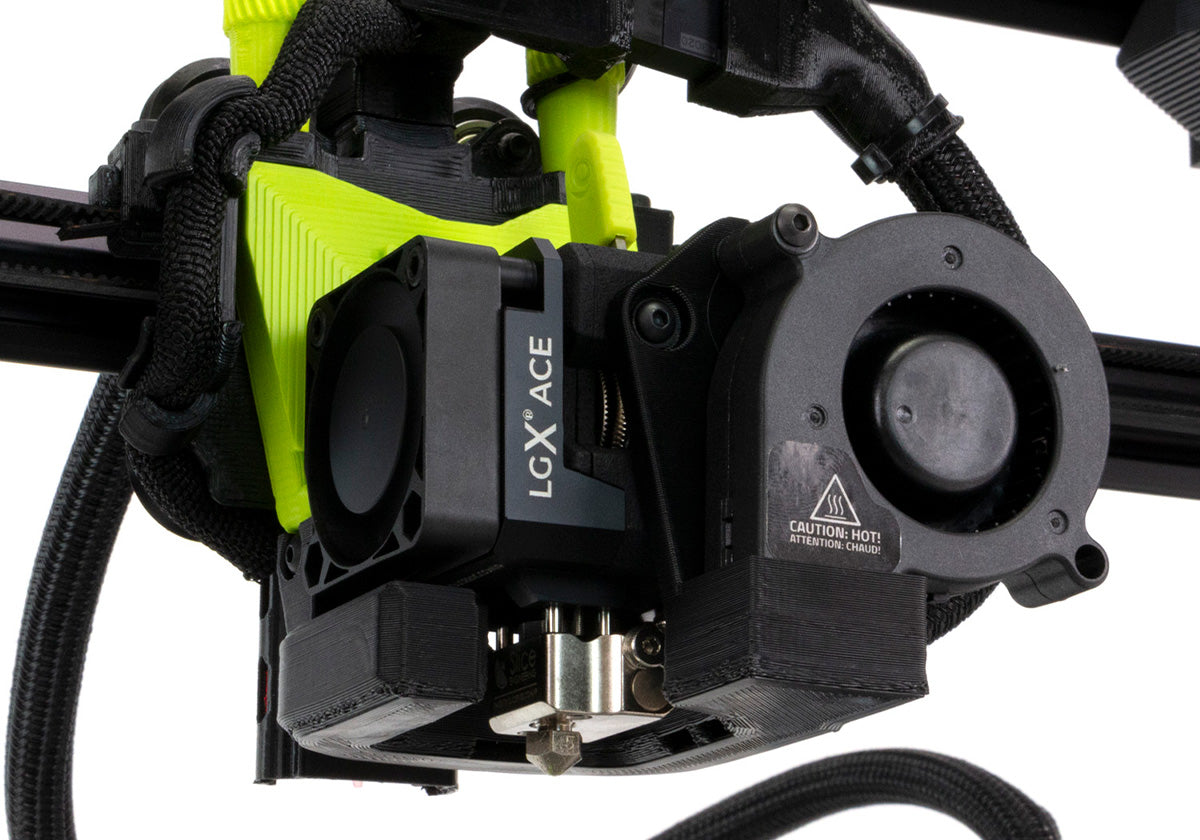

Meteor 175 Tool Head

360° part cooling, flawless printing of flexible materials and no-nonsense tensioning make the Meteor 175 a great addition to the SideKick 747 - Premium.

Belt Driven Z-Axis

Allows for printing at a variety of layer height resolutions, eliminating Z banding or Z wobble issues that can arise in lead screw equipped machines.

Runout Sensor

Feel confident throughout extended prints with this filament runout sensor. The filament is constantly monitored to prevent interruptions from various filament mishaps.
