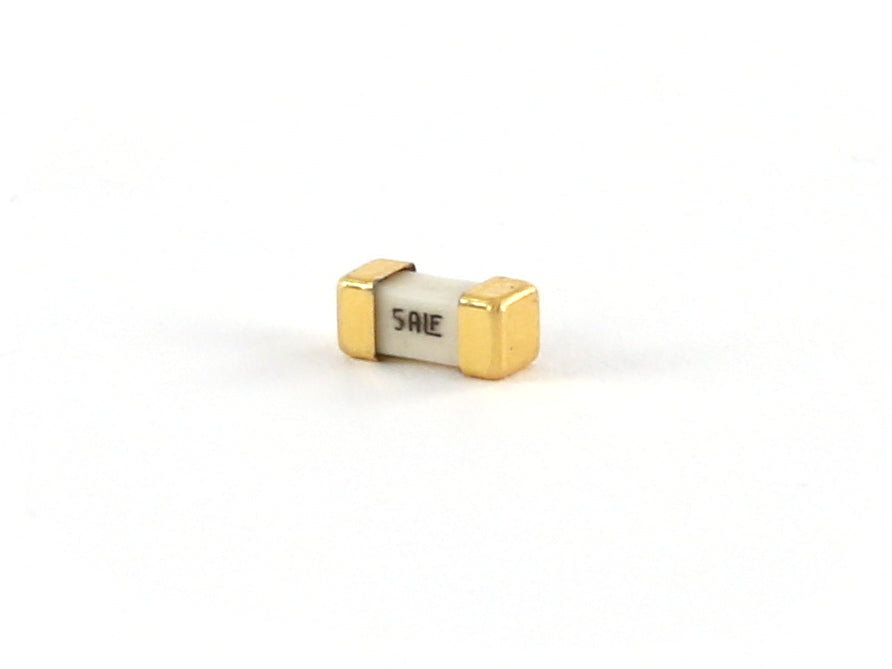

5 Amp Nano Polyfuse (x3)

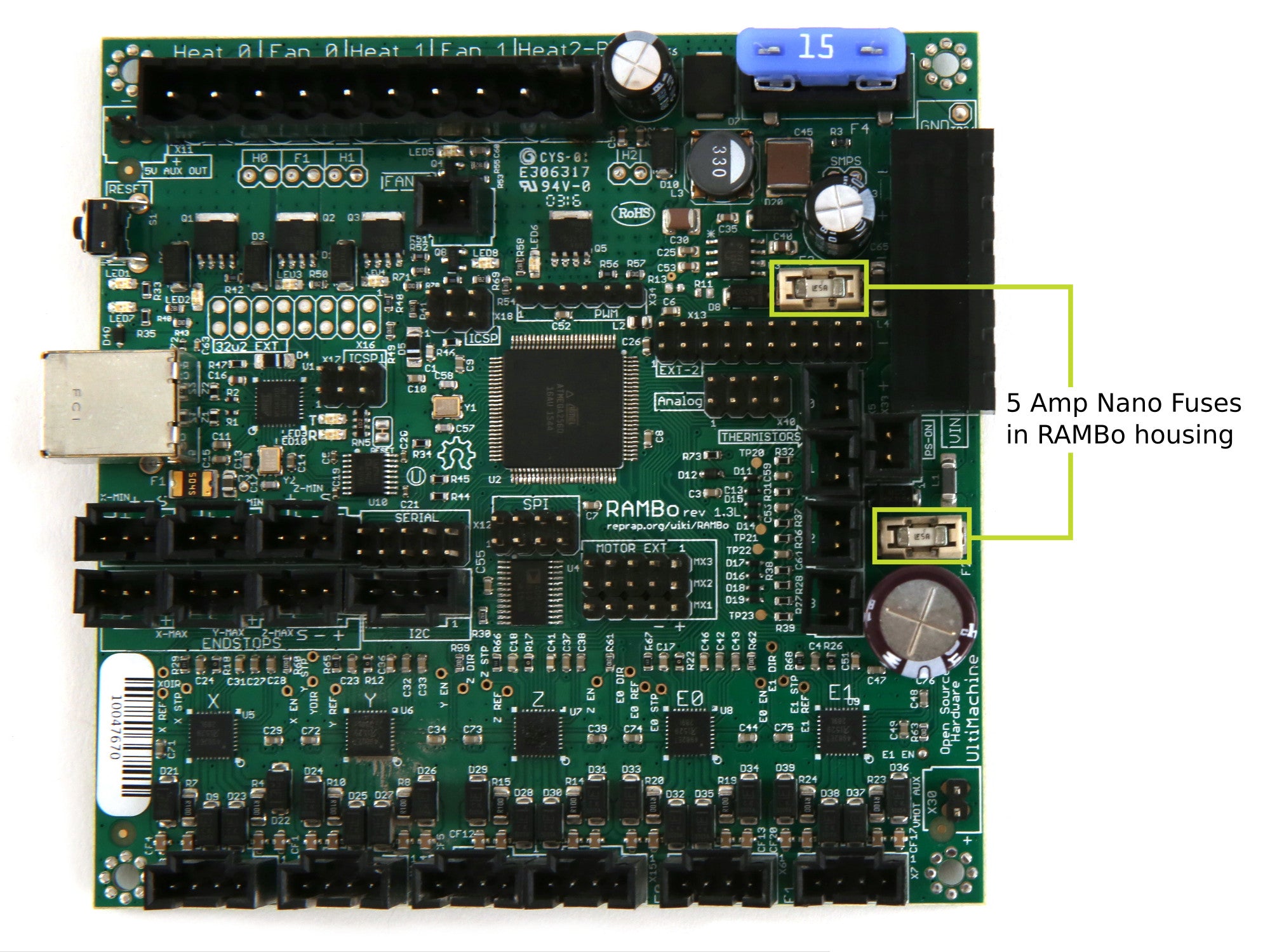

These fast acting 5 amp nano polyfuses serve as the first line of defense for the full-sized RAMBo control electronics used in the LulzBot TAZ by protecting against potential damage caused by shorting. This three pack of LulzBot 3D printer fuses provides a full replacement set for the hot end/logic fuse, the stepper drivers fuse, with one additional fuse to be held in reserve as further backup.
-
Customer Note:
If you own a LulzBot 3D printer and are having issues with your machine, please contact us for assistance before purchasing this component.
Parts Included

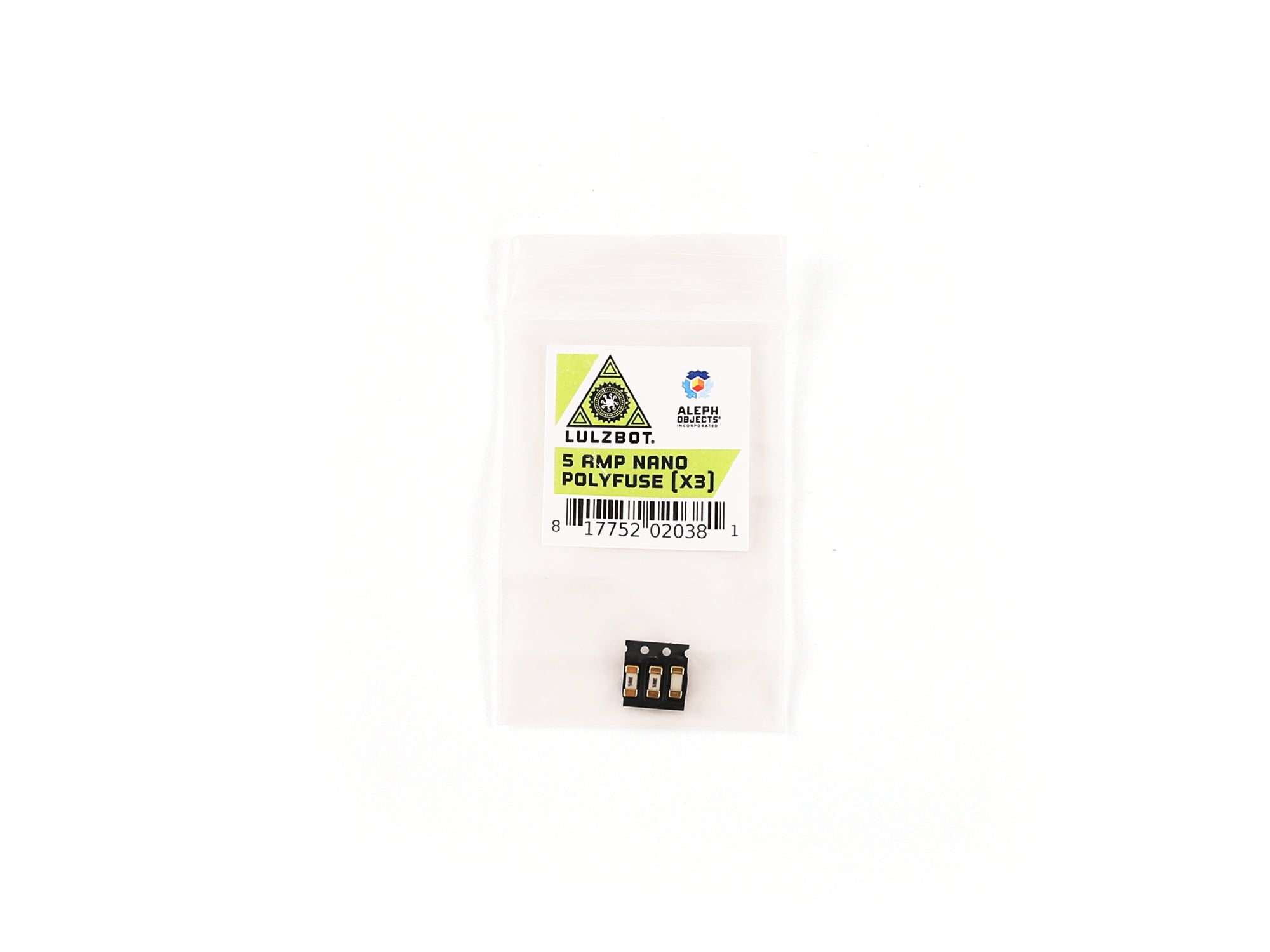

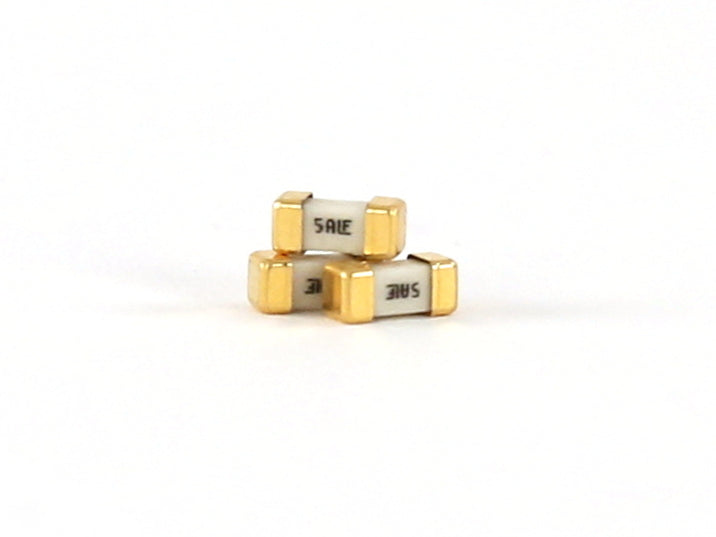

Three (3) Nano Polyfuses
Specifications
Rated Amperage: 5 Amps
Maximum Voltage Rating: 125 Volts
Nominal Resistance: 0.015 Ohms
Reduction of Hazardous Substances (RoHS) Compliant: Yes
Length: 6.10 mm ± 0.20 mm (0.24 in ± 0.008 in)
Height: 2.69 mm ± 0.25 mm (0.11 in ± 0.01 in)
Width: 2.69 mm ± 0.25 mm (0.11 in ± 0.01 in)
